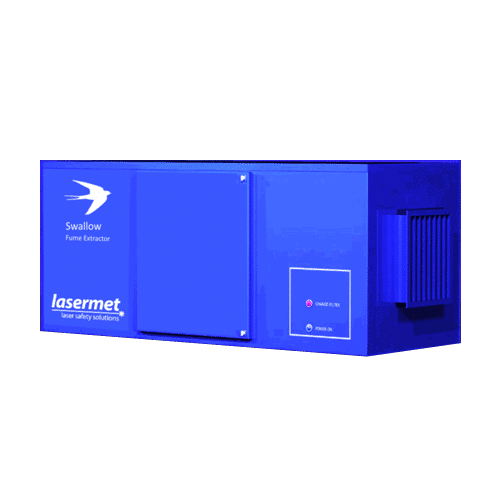

Swallow 4000
Filtered Fume Extraction System for Lasers
The Swallow is an air cleaner designed for the removal of particulates and gaseous contaminants and is typically suspended above the laser process workspace.
Description
It is especially made for uses where direct source capture might be challenging, like laser welding, where there are high concentrations of load particles. Another optional stage of filtration to control gases and odors is laser fume absorbent canisters.
Depending on the laser process, the user can choose from a range of particulate or gaseous/chemical filtration stages on the 4000cfm unit (6800m³/hr) that accepts multiple stages of air filtration.
FEATURES
- Full size air intake draws contaminants and recirculates filtered air
- Internal air filters are sealed with full gaskets
- Filter options include: pre-filtration, a secondary filter, HEPA or absorbent filters
- 4000cfm (6800m³’hr) unit
- Directional louvers adjustable for returned air
- LED indicators for filter pressure drop and unit operation.
- Service door provides access to all components
- Power options: 120VAC-1Ph, 230VAC-3Ph,480VAC-3Ph
SPECIFICATIONS
| Part Number | FES-SW-4000 |
| Rated airflow | 4000 cfm (6800 m3/hr) |
| Air changes per hour for 140m3 cabin | 50 |
| Pre-filter | optional |
| Final filter | HEPA or Absorbent filter |
| Canisters | optional |
| Sound Level at 5ft perimeter | 73 dB |
| Operating Weight | 227 kg (500.44 lbs) |
| Dimensions | 1.4 x 0.8 x 1.9 m (55.11 x 31.50 x 74.80 inch) |
| Voltage | 120VAC 1-Ph 230VAC 3-Ph 480VAC 3-Ph |
| Power Consumption | 1030 W |
| Throw (distance at 100fpm) | 30.5 m |
