LED Mini Signs
Small LED Warning Signs
These compact backlit LED signs are ideal for use in commercial, retail, or industrial premises. Custom messages are available to suit a variety of needs, also available in single message or dual message options.
-
Environmentally friendly, low power consumption, using only 3.6W each
-
Available in either one-way or two-way options
-
Expected lifetime of 50,000 hours, requiring no maintenance during their operational life
-
Automatic or manual switching options
Description
The two- or three-way switch on the 24V DC power supply can be used to manually or automatically switch the signs. There’s also a 48VDC option available. An indicator LED at the end of the switch toggle on the switchable power supply shows the appropriate color of the sign. A single compact backlit LED sign or two can be powered by this power supply.
BESPOKE MESSAGES
The wording and symbols on the compact signs can be specially created to meet the needs of the customer. The customer can specify the necessary design in the custom wording designs.
Dual message signs are red and green, while single message options are backlit yellow. On request, other colors might be available.
SPECIFICATIONS
| Voltage | 24VDC |
| Power Consumption | 150mA (3.6W) |
| Weight | 160g (0.35 lbs) |
| Dimensions | 160w x 108h x 38.5d mm (6.30w x 4.25h x 1.52 inch) |
Standard Options
‘LASER HAZARD’ SIGNS
‘ROOM IN USE’ SIGNS
‘LAB IN USE’ SIGNS
‘OCCUPIED’ SIGNS
‘DO NOT ENTER’ SIGNS
‘NO ENTRY’ SIGNS
More sign options are available.
| Part Number | Description (Sign) | Colours Available |
|---|---|---|
| LEDS-1WR-FLB | Flasher Board, Without Overlay |  red |
| LEDS-1WB/Y | Without Overlay |  blue  yellow |
| LEDS-2WRG | Without Overlay |  red/green |
| LEDS-1W-OVERLAY-CUSTOMIZED | Customized Overlay, (1-Way) |  white red blue yellow  green |
| LEDS-2W-RIU/RIP | RIU/RIP | red/green |
| LEDS-1WY-GR | ‘Gevaar RÖNTGEN’ (German) | yellow |
| LEDS-2W-GLA | ‘Gevaar Laser Aan’ (German) | red/green |
| LEDS-1W-NWG-J | You are not wearing goggles (Japan) | white red blue yellow green |
| LEDS-2W-XR-J | X-Ray (2-Way) (Japan) | red/green |
| LEDS-L-1WY | Laser Warning Sign | yellow |
| LEDS-L-2W | Laser Warning Sign | red/green |
| LEDS-L-1W-G | ‘Achtung Laser An’ (German) | yellow |
| LEDS-L-2W-G | Laser Warning Sign (German) | red/green |

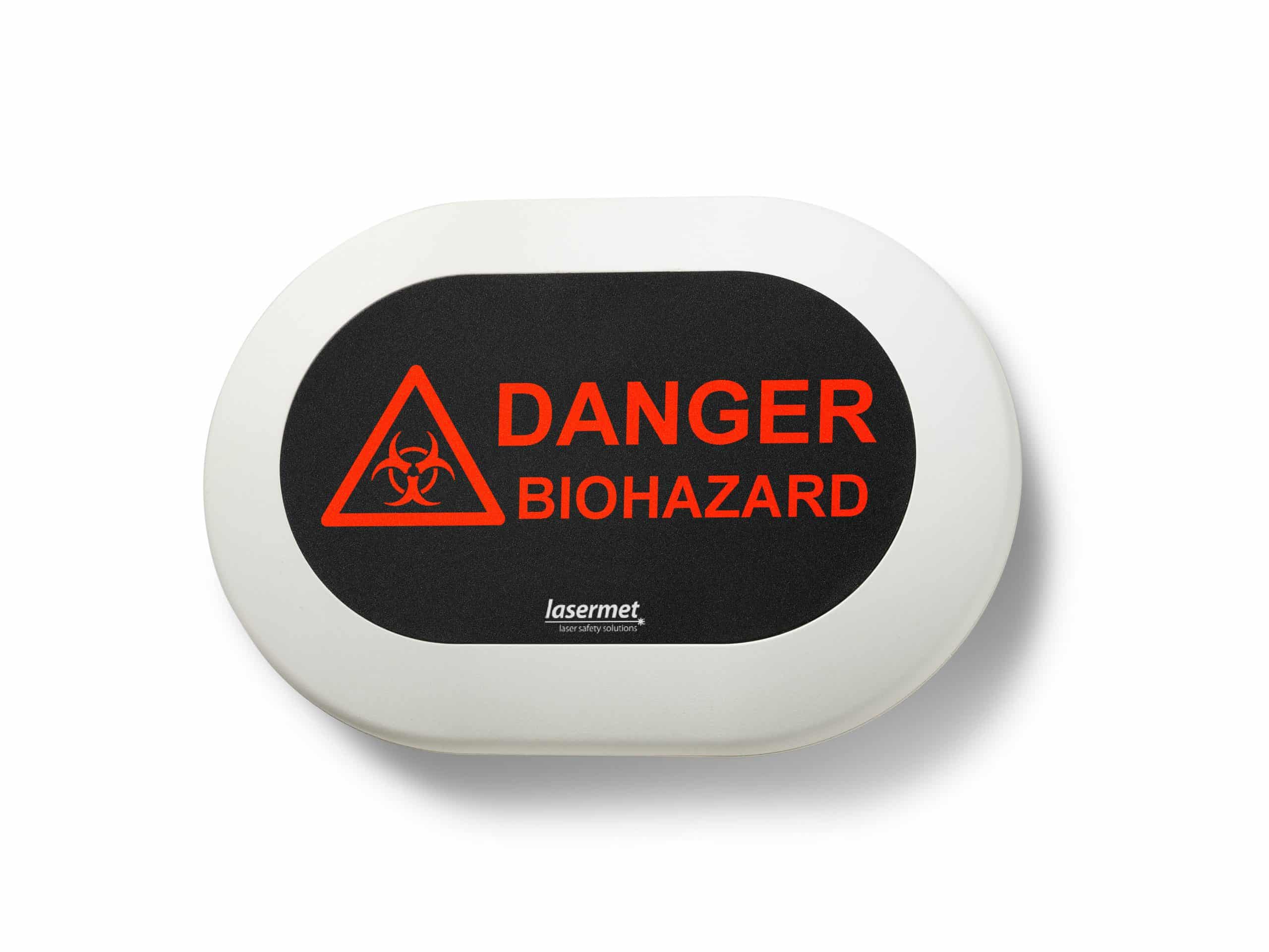

| LEDS-BH-1WY | Biohazard | white red blue yellow green |

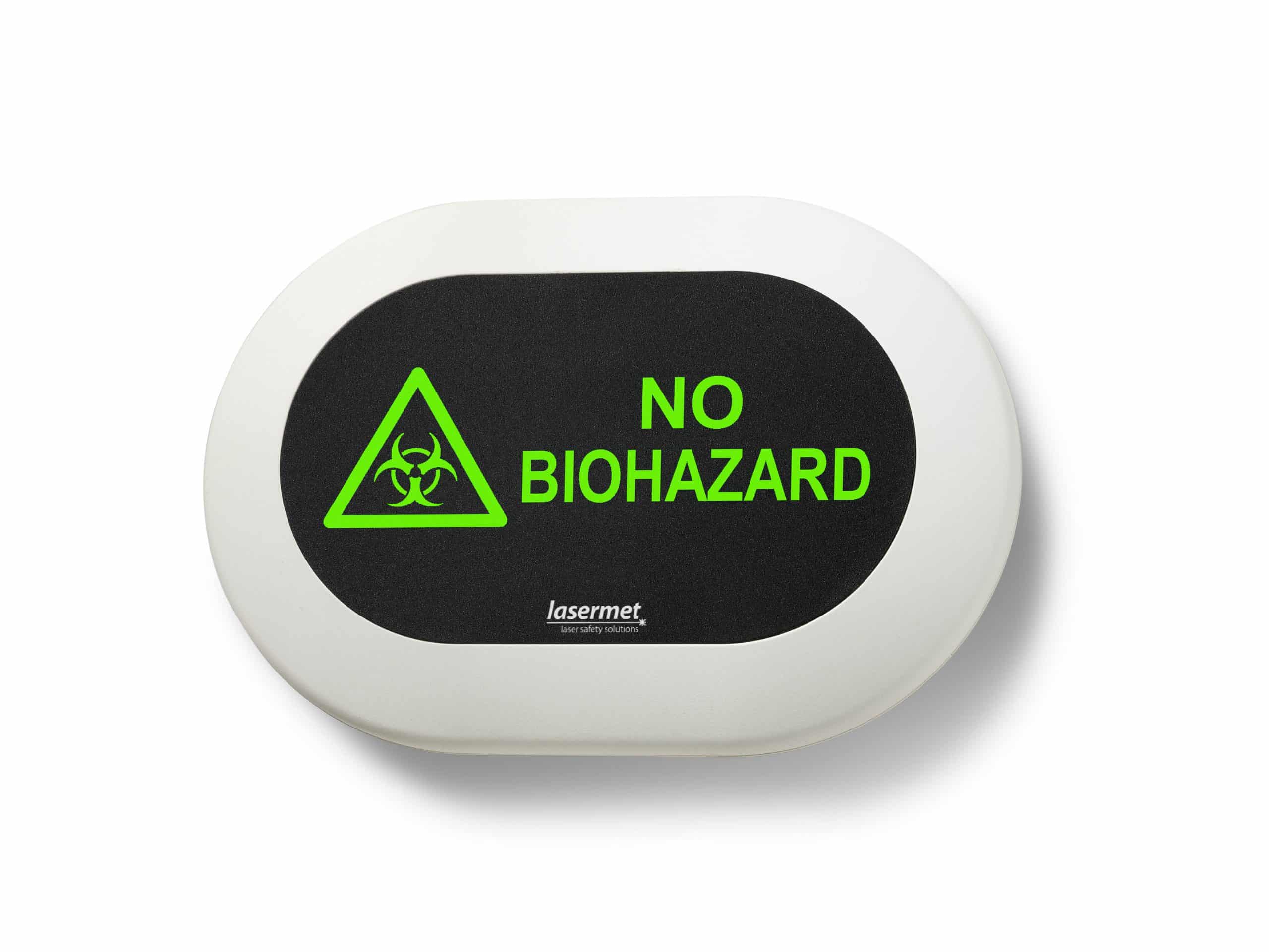

| LEDS-BH-2W | Biohazard | red/green |
| LEDS-NE-1WR | No Entry | red |

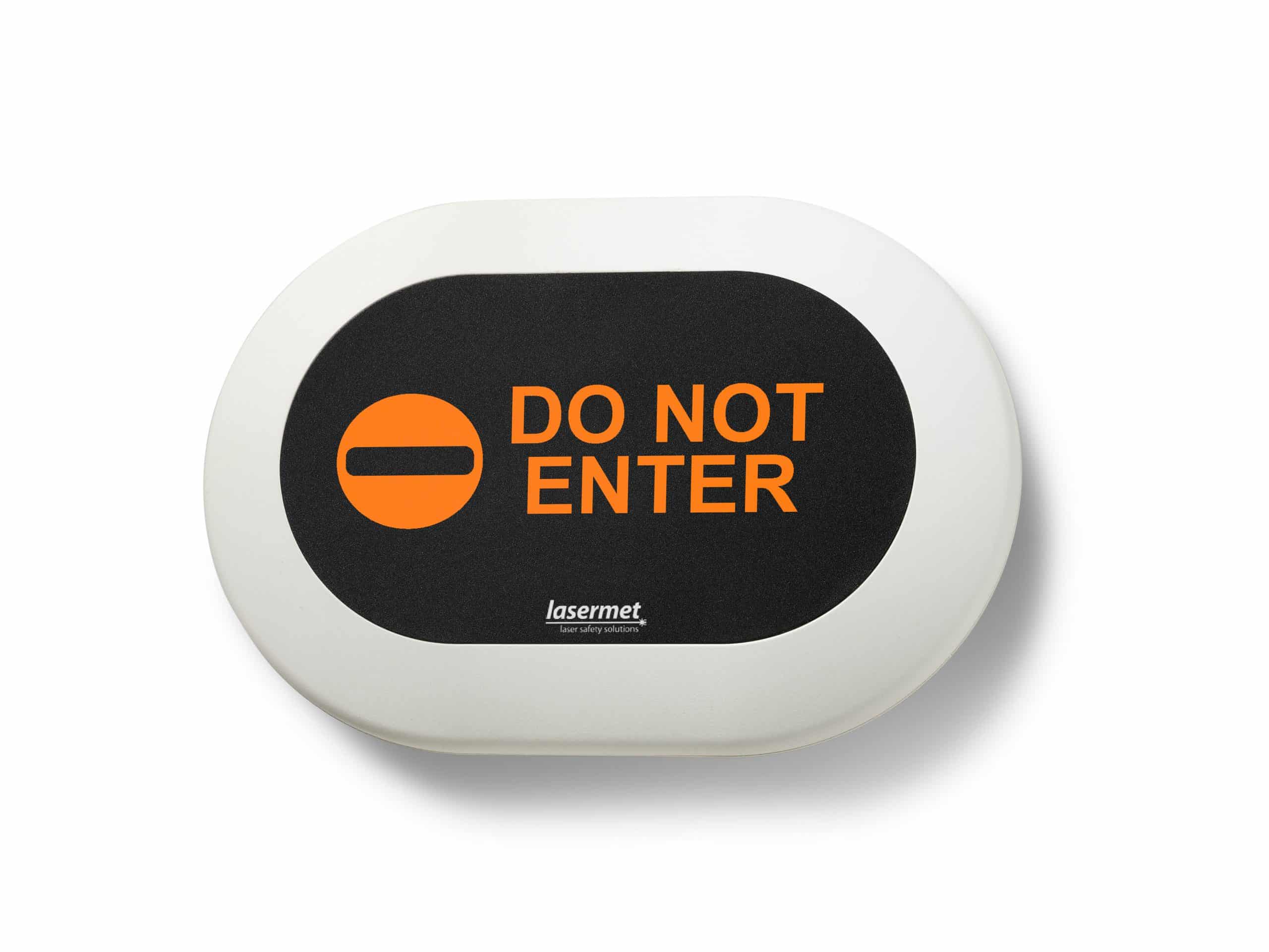

| LEDS-DNE-1WY | Do Not Enter | yellow |
| LEDS-DNE-2W | Do Not Enter | red/green |
| LEDS-IB-1WY | LED Ion Beam | yellow |
| LEDS-IB-2W | LED Ion Beam | red/green |
| LEDS-IGR-1WY | LED Ionizing Radiation | yellow |
| LEDS-IGR-2W | LED Ionizing Radiation | red/green |

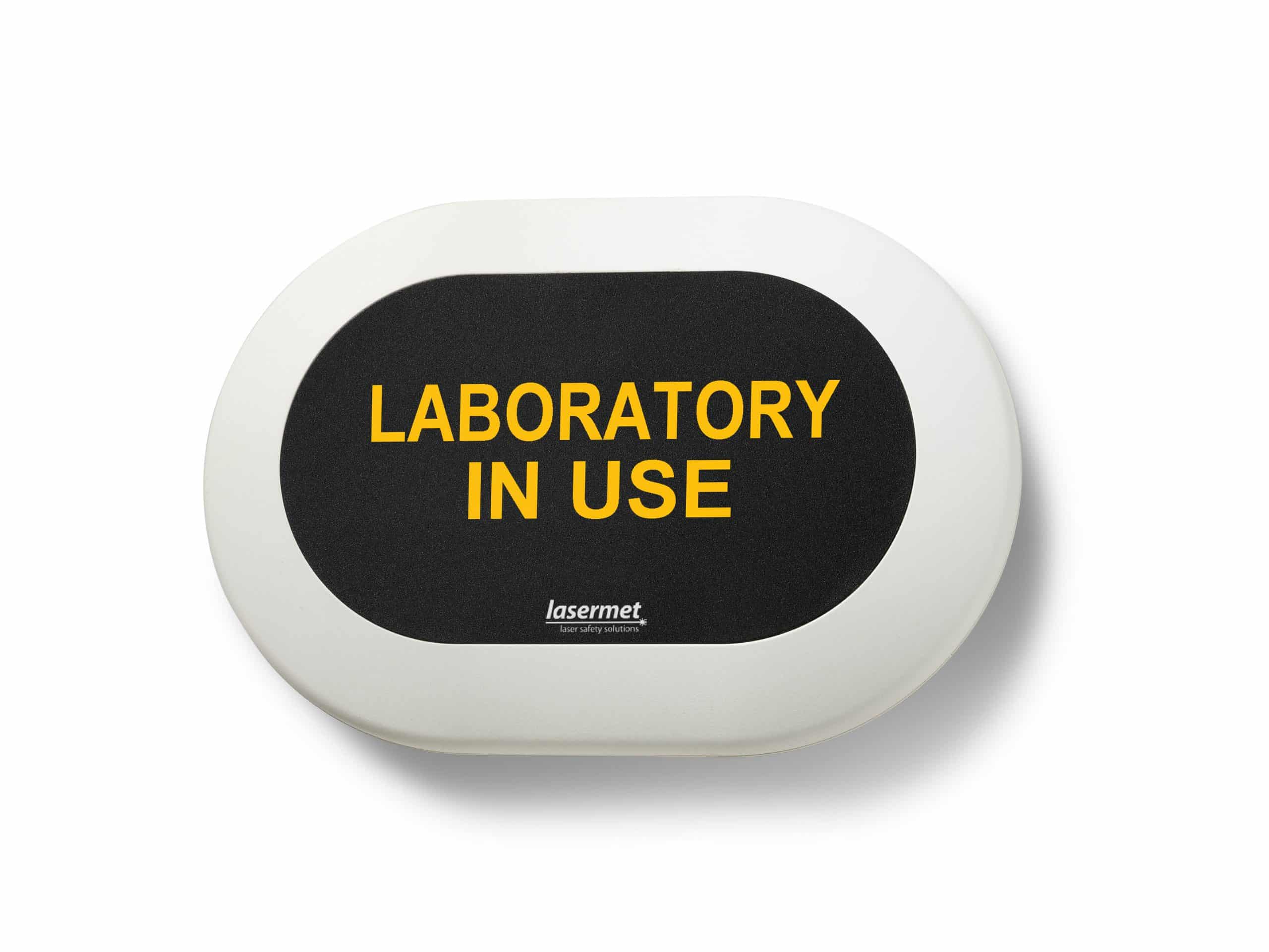

| LEDS-LIU-1WY | Lab In Use | yellow |
| LEDS-LIU-2W | Lab In Use | red/green |
| LEDS-LCA-1WY | Laser Controlled Area | yellow |
| LEDS-LOP-1WR | Laser Operational | red |
| LEDS-LPO-1WY | Laser Power On | yellow |
| LEDS-MH-1WY | Magnetic Field | yellow |
| LEDS-MH-2W | Magnetic Field | red/green |
| LEDS-NWG-1WB | `You are not wearing goggles` (static) | white red blue yellow green |
| LEDS-NWG-1WB-FL | `You are not wearing goggles` (flashing) | blue |
| LEDS-OC-1WY | Occupied | yellow |
| LEDS-OC-2W | Occupied | red/green |
| LEDS-RIU-1WY | Room In Use | yellow |
| LEDS-RIU-2W | Room In Use | red/green |
| LEDS-XR-1WY | X-Ray Warning Sign | yellow |
| LEDS-XR-2W | X-Ray Warning Sign | red/green |
| LEDS-XR-1W-G | ‘Achtung! Röntgenstrahlung’ (German) | yellow |
| LEDS-XR-2W-G | X-Ray Warning Sign (German) | red/green |
