Showing 33–48 of 64 results

  • Low-cost and self-build enclosure that ensures laser safety.

    Laser Castle Lite

    Self-build Laser Safety Enclosure
    The Laser Castle Lite is a self-build miniature version of Lasermet’s Laser Castle Cabin. The Laser Castle Lite is a low-cost modular enclosure that is easy to build and deploy on site.
    • Ideal for hand-held lasers and small laser robots
    • Interlock® ready
    • Low-cost modular safety solution
    • Self-assembly
  • Laser safety windows, Plastic filter windows, Laser viewing windows

    Laser Filter Windows

    Laser Safety Viewing Windows
    Laser viewing windows enable you to see inside an enclosure while stopping the laser radiation from coming out, thus providing protection with the minimum of inconvenience.
    These viewing windows are available for a wide variety of different types of lasers and can be made of either plastic or mineral glass.
  • Laser Jailer

    Active Laser Guarding Safety System

    The Laser Jailer combines an inherently fail-safe laser detection technique and Lasermet’s proven laser Interlock® control system technology to create an active laser guarding system conforming to Machinery Directive Standard EN 13849-1.

    • Active and Passive Laser Enclosures

    • Lightweight, modular, scalable

    • Retrofit to existing rooms and enclosures

    • Rapid turnkey solution

    • Conforms to laser safety standards EN/IEC 60825-1 and ANSI Z136.1

  • Laser warning labels to US satndards

    Laser Warning Labels

    Laser Warning Labels to Current Laser Safety Standards
    All labels are printed on durable self-adhesive vinyl, with the correct coloring, wording, symbols and layout as defined in the European, International or US standards.
  • LED sign, small LED sign, customizable LED sign, laboratory sign, laboratory LED sign, illuminated sign

    LED Mini Signs

    Small LED Warning Signs
    These compact backlit LED signs are ideal for use in commercial, retail, or industrial premises. Custom messages are available to suit a variety of needs, also available in single message or dual message options.
    • Environmentally friendly, low power consumption, using only 3.6W each
    • Available in either one-way or two-way options
    • Expected lifetime of 50,000 hours, requiring no maintenance during their operational life
    • Automatic or manual switching options
  • LED sign, illuminated sign, customizable sign

    LED Ultra Signs

    Large Area LED Signs
    Lasermet’s range of Ultra Signs are attractive, professional, illuminated wall-mounted signs for use indoors. Unlike pixelated matrix LED displays, the backlit LED design creates a seamless high quality display and look.
    • High class, professional product for internal use
    • Low energy, low voltage 24VDC (48VDC option available)
    • LED lifespan up to 50,000 hours
    • Stackable using the interlocking plastic trim, or the specifically designed back mounting box for up to four signs
    • Low 24mm (0.94 inch) profile ideal for use at any height, virtually eliminates risk of obstruction or accident through collision
  • Single channel laser shutter with 15 mm beam aperture

    LS-10 Series Laser Beam Shutters

    Laser Safety Beam Shutters & Beam Dumps

    The LS- range of laser beam shutters are combined shutters and beam dumps designed to be driven by a safety control system such as the Lasermet’s Interlock® controller for use as a means of shutting down the laser beam automatically during unauthorised access, or manually when the beam is not required. They can also be used as stand-alone laser shutters for manual or remote switching of the laser beam.

    • Gravity-operated for fail safe control

    • Combined shutter and laser beam dump for added safety

    • Compatible with interlocked safety control systems

    • Safety latch prevents accidental laser beam switch on

    • Remote switching option

    • Available as OEM product



  • Dual channel laser shutter with 16 mm beam aperture

    LS-20 Series High-Integrity Laser Beam Shutters

    High Integrity Laser Safety Beam Shutter

    The Lasermet LS-20 Laser Safety Shutter is intended to provide a means of preventing accidental exposure to a potentially harmful laser beam.

  • Laser shutter with beam dump

    LS-200 Laser Beam Shutter

    LS-200 – The “Thunder Shutter”
    • Gravity close blade

    • Range of blade options

    • Three control options

    • Optional beam dumps: Air cooled or water cooled

    • Safety rated options:

      • LS-200 (Standard) EN ISO 13849-1 PL ‘c’

      • LS-200 SIL-24 EN ISO 13849-1 PL ‘e’ IEC 61508-1 SIL 3

  • High power beam dump dissipates laser beam energy with 45 mm beam aperture.

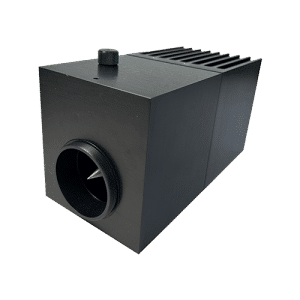

    LS-200-BD-HP Laser Beam Dump

    LS-200-BD-HP

    Lasermet’s beam dump is designed for the LS-200 laser beam shutter. A shutter can dissipate about 20W of laser power, but with Lasermet LS-200-BD-HP it can dissipate considerably higher power laser energy.

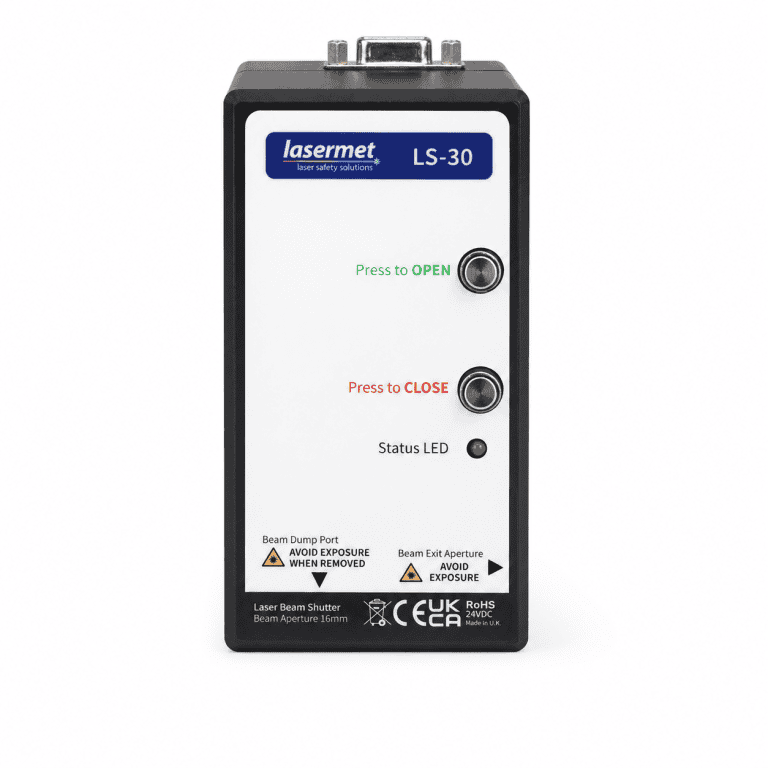

  • LS-30 Series Laser Beam Shutters

    High Integrity Laser Safety Beam Shutter

    The Lasermet LS-30 Series of Laser Safety Beam Shutters are intended to provide a means of preventing accidental exposure to potentially harmful laser beams.

    • Mounted in any orientation
    • Spring-loaded blade
    • SIL3-rated Dual-channel versions available
    • OEM versions available
  • LS-300 Series Large Aperture Laser Shutters

    The Lasermet LS-300 Series of Laser Safety Beam Shutters are intended to provide a means of preventing accidental exposure to potentially harmful laser beam.

    Available aperture sizes included are:

    • 2″ (50mm)
    • 3″ (75mm)
    • 4″ (100mm)
  • Remote switching, Interlock accessory, Beam shutter interlock

    LS-RS30

    Remote Switching for Beam Shutters
    The LS-RS30 allows Lasermet beam shutters to be remotely operated and controlled. It can accommodate a single beam shutter connection.
  • Standard optical table enclosure and customizable tabletop enclosure.

    Lucas Table Top Enclosure

    Optical Table Top Enclosure
    The Lucas Laser Castle® is a fully enclosed Optical Table Top Enclosure for laser safety that fits onto rails located on an Optical Table.
    • Class 1 Enclosure for Class 4 Lasers
    • Certified to EN 60825-1 and ANSI Z136.1
    • CE and UKCA marked
  • Audio alert, Audio message, Public announcement, Speaker

    MAAS Multiple Audio Alert System

    Record and playback up to 16 unique messages

    The MAAS Multiple Audio Alert system is a local PA system for automatic announcements, warnings, information, or instructions suitable for indoor use. It can be easily integrated into Lasermet’s Interlock® control systems.

    • Fully custom messages, repetition, and volume

    • Line-out to external audio equipment, speakers

    • Safe at 24VDC low voltage

    • Professional, compact, wall-mounted design

  • Monitored LED Ultra Sign

    Monitored Signs for highly safety critical applications
    Lasermet’s range of Ultra Signs are attractive, professional, illuminated wall-mounted signs for use indoors. These kits will enable Ultra Signs to operate more reliably and effectively.
    • Can be modified for use with Two-way or Three-way signs
    • Can be interfaced with any Interlock Controller
    • Lamp Failure Monitoring
