Dolphin Laser Blocking Curtains
Certified Laser Blocking Curtains to EN 12254
Lasermet’s Dolphin Laser Blocking Curtains are CE marked and certified to EN 12254 – Screens for Laser Working Places. These curtains are intended to be used to stop stray laser radiation from escaping a laser-controlled area or laser working area.
-
Made to measure
-
CE and UKCA marked
-
Ideal for industrial applications, such as handheld laser welding
-
Blackout laser blocking curtain
Description
Laser Protection with Laser Safety Curtains
Ordinary curtains are rarely capable of stopping a laser beam and specially designed certified laser blocking material must be used to ensure that laser beams do not escape from the laser controlled area.
Laser blocking curtains are intended to protect those who are not in the area from laser radiation. Individuals entering the laser-controlled area must wear appropriate personal protective equipment, such as protective eyewear.

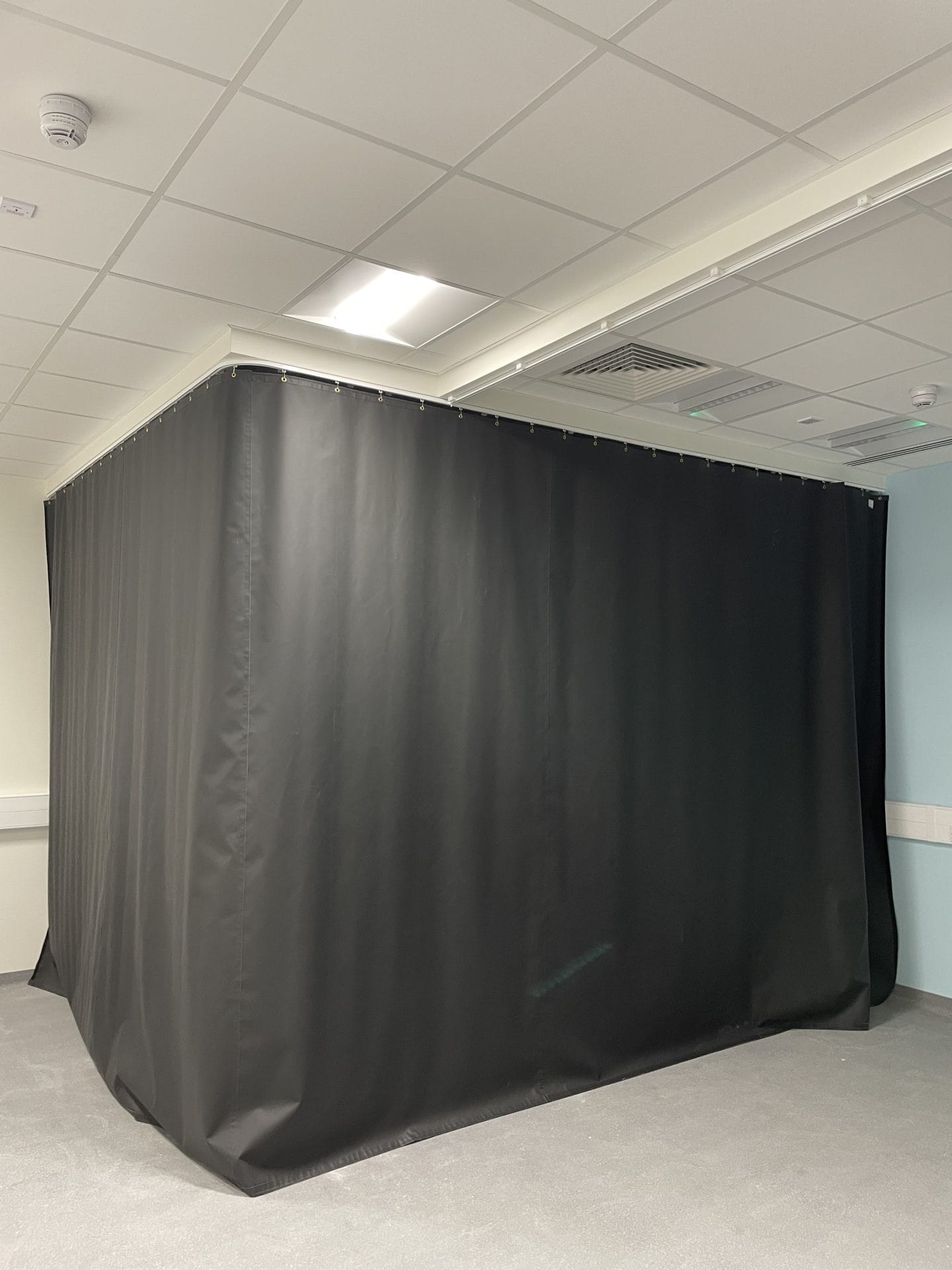

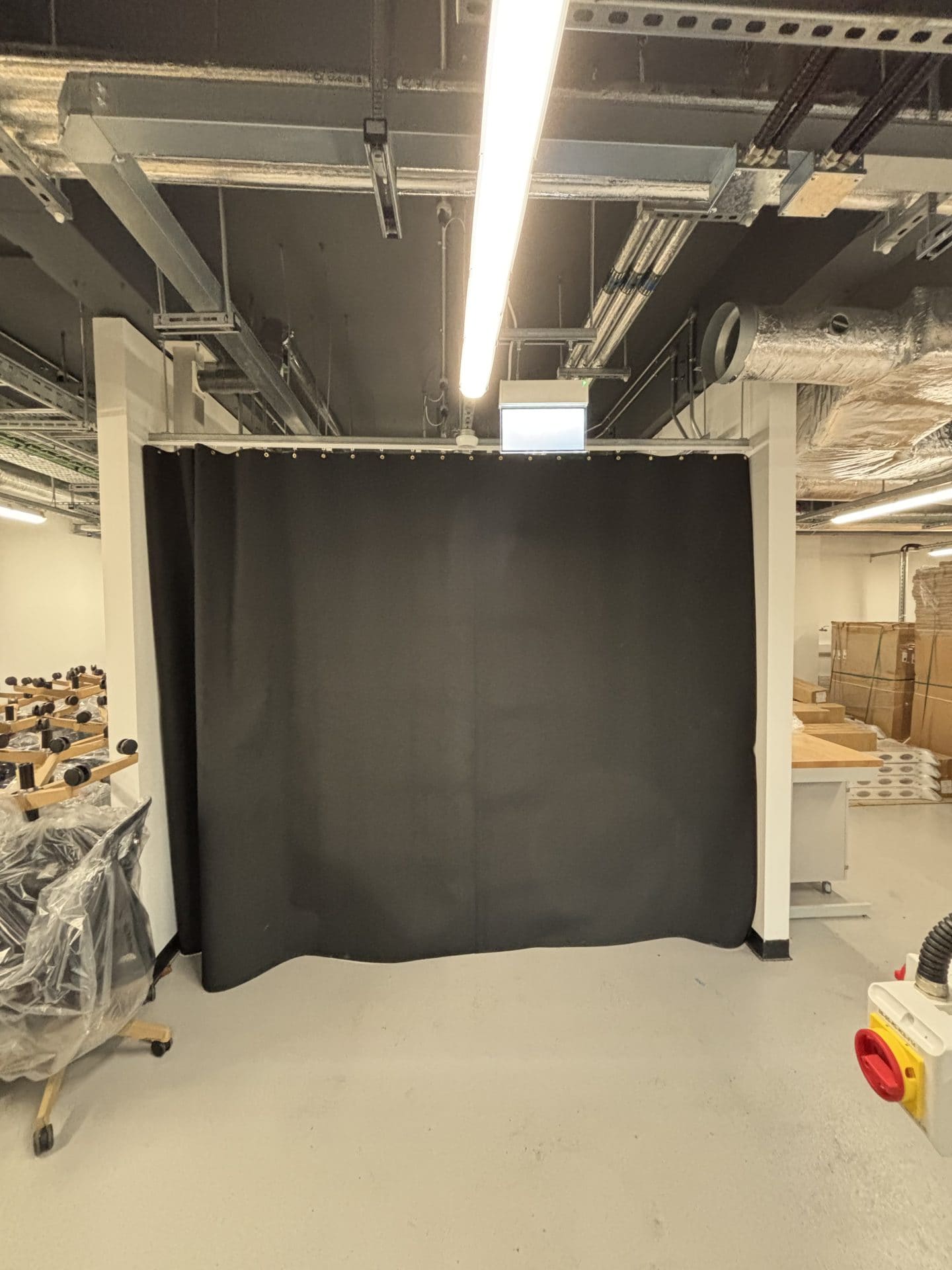

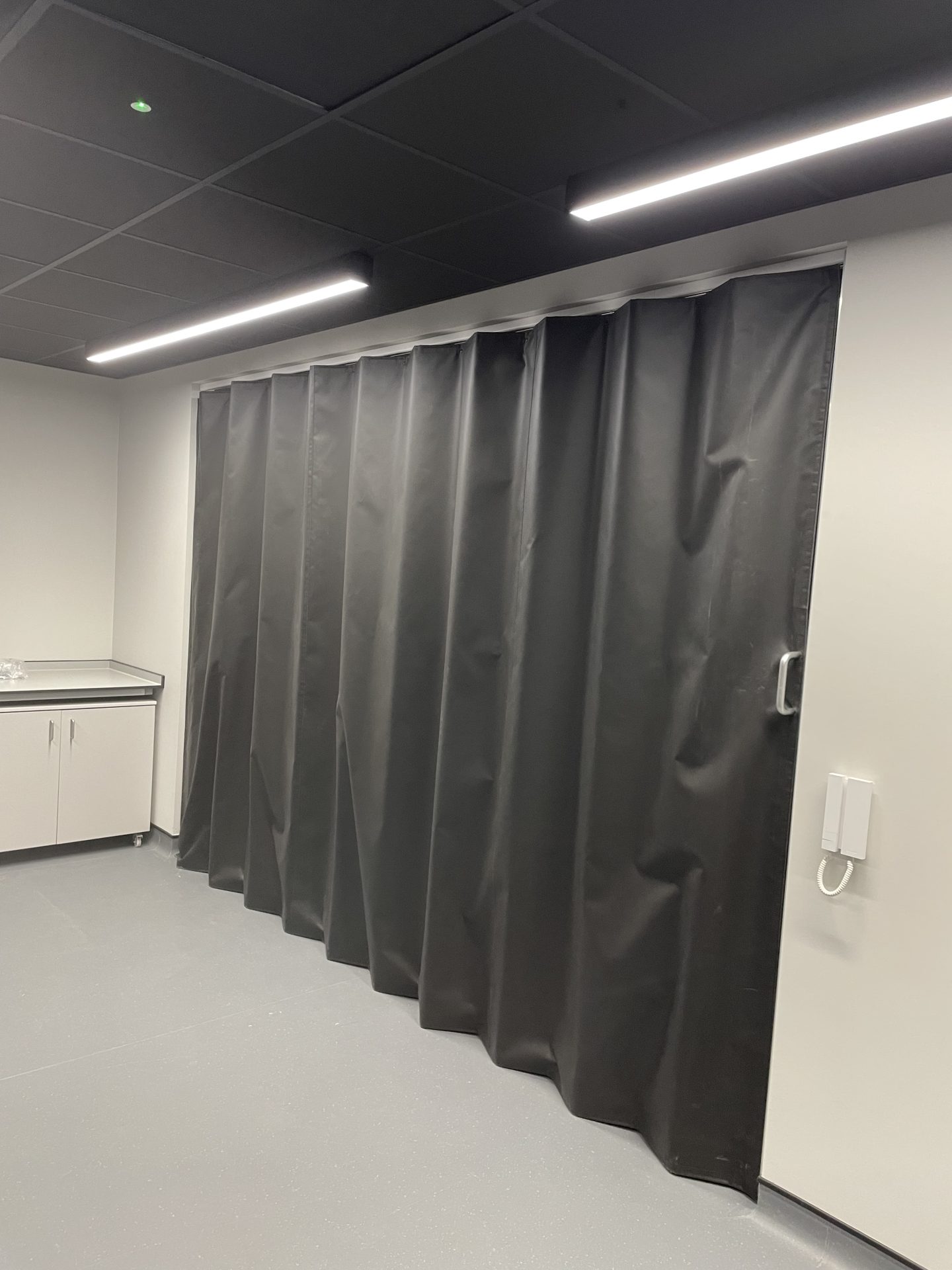

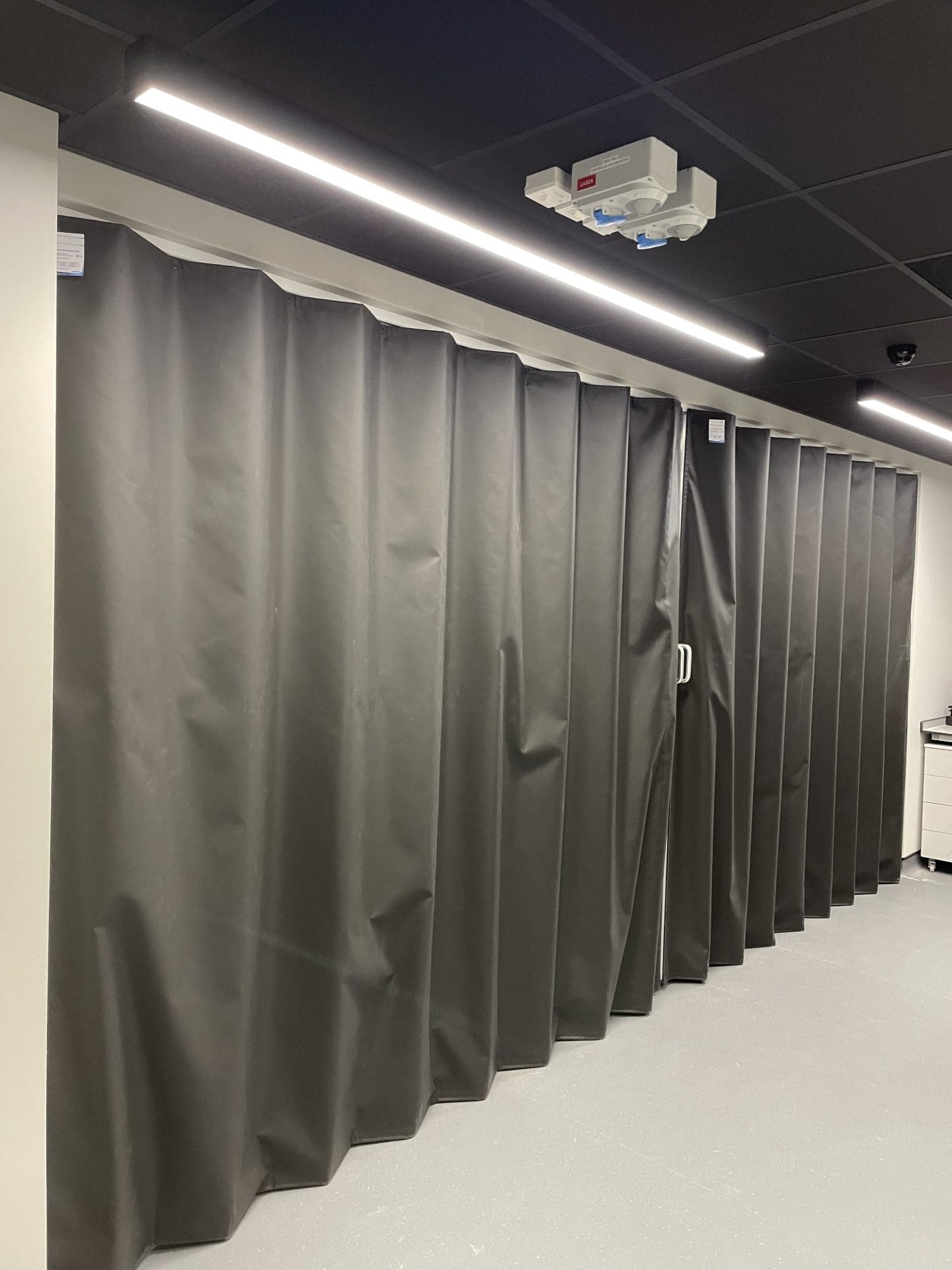

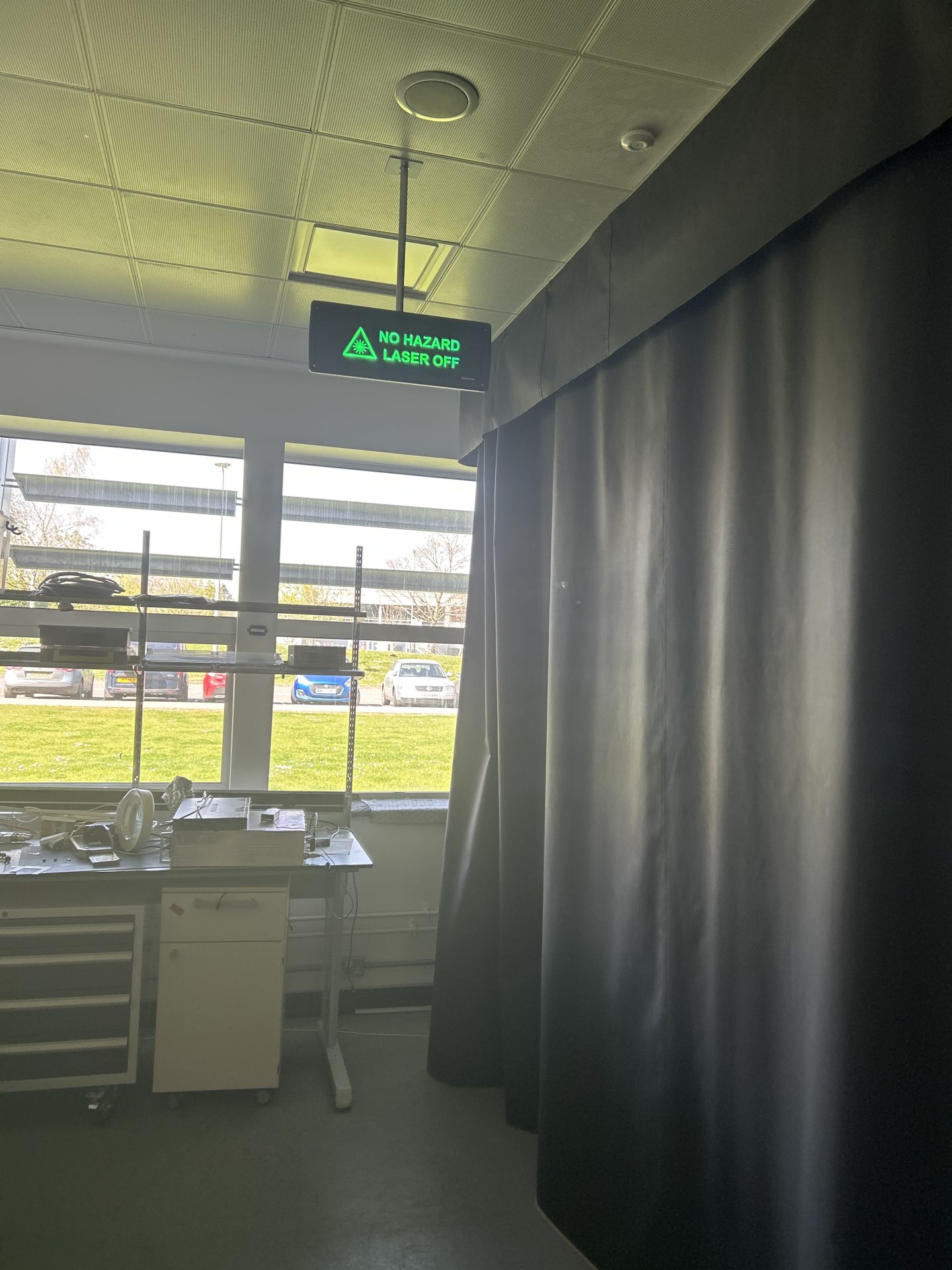

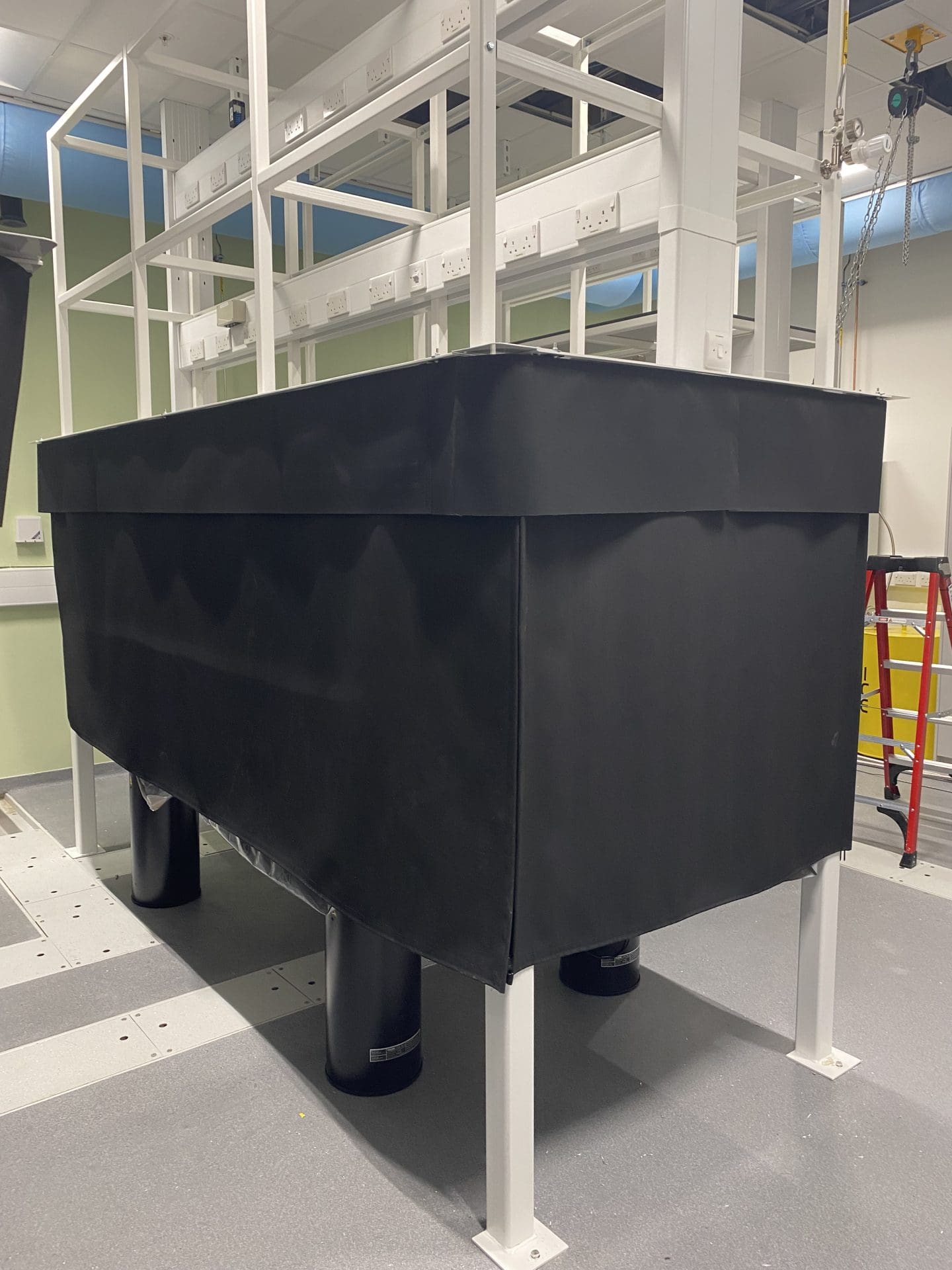

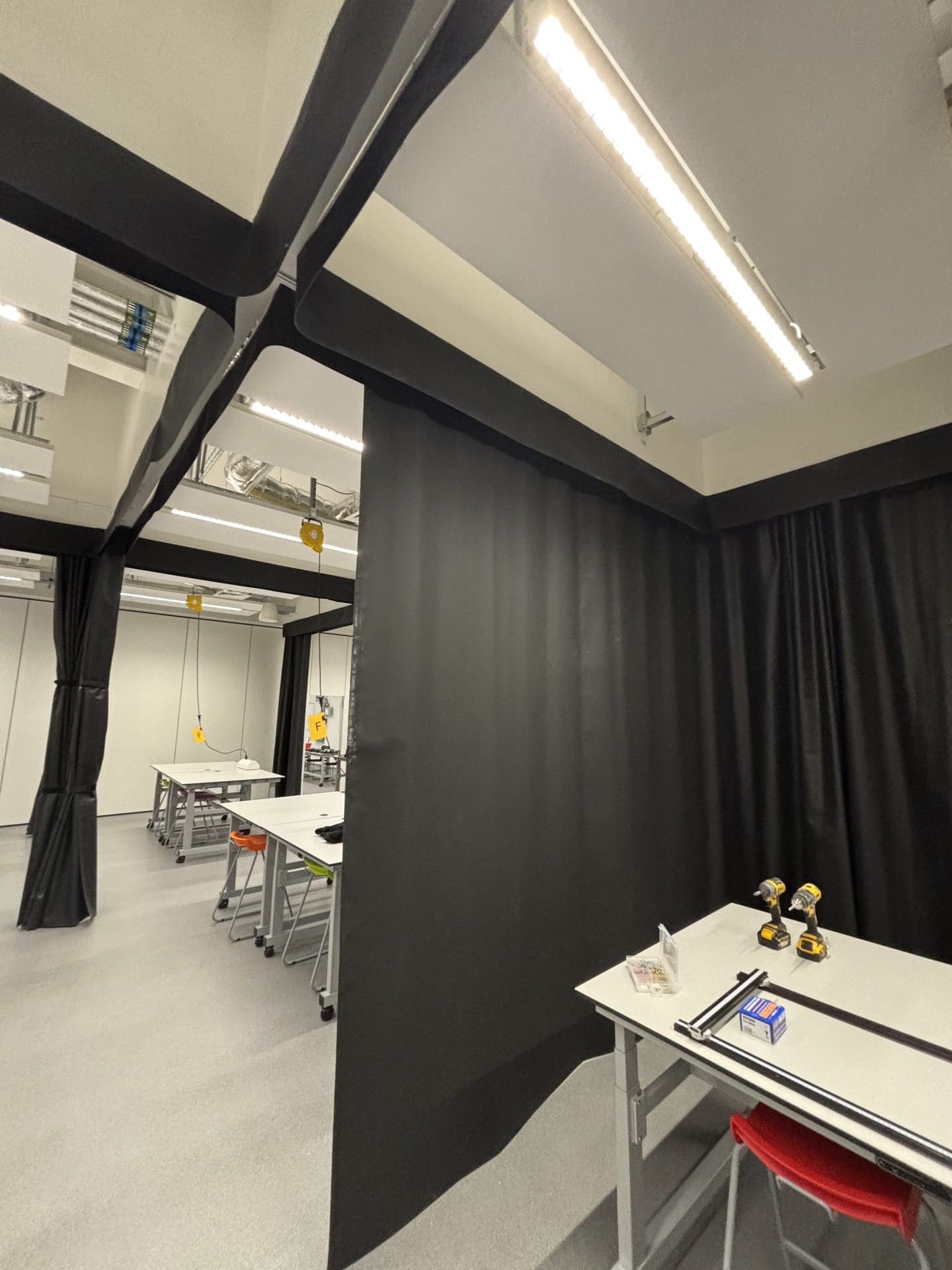

Lasermet’s laser blocking curtains are ideal for providing the necessary level of protection. They are made of a specially developed laser blocking material by the company and arrive ready-made as ceiling or wall-mounted curtains. The material is black on both sides and can be used as both a blackout screen and a laser-blocking screen.
PROTECTION LEVELS
Wavelength Range (nm) | Protection Level |
180 – 315 | D AB8 + IR AB3 + M AB5Y |
315 – 1050 | D AB6 + IR AB7 + M AB7Y |
1050 – 1400 | D AB5 + IR AB7 + M AB7Y |
1400 – 25000 | DI AB3 + R AB3Y |
DIRECTIVES AND STANDARDS
- Machinery Directive 2006/42/EC
- EN 12254: 2012 Screens for Laser Working Places
- Fire Safety EN 1598 Section 4.4
Additional information
Colour | Black on both sides |
---|---|
Finish | Matte |
