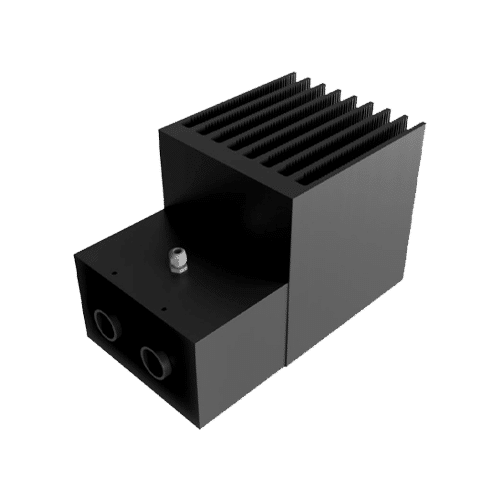

BD-20-AC-DC Laser Beam Dump

Dual Channel Beam Dump for LS-20SIL and LS-30SIL

The dual channel BD-20-AC-DC beam dump is compatible with the SIL-rated laser shutter LS-20SIL and LS-30SIL.

When the shutter is closed, the shutter deflects the incoming laser beam towards its beam dump.

  • Dual channel
  • SIL3-rated
  • Compatible with Lasermet beam shutters



Description

The beamdump is connected to the shutter by connector ring(s) supplied with the shutter. To connect beam dump, unscrew the plug from the beam dump port of the shutter and screw the connector ring in its place.

SPECIFICATIONS
Dimensions162 x 90 x 100 mm
(6.38 x 3.54 x 3.94 in)
Weight3.2 kg
(7.05 lb)
Aperture Size20 mm , two appertures
(0.79 in)
MaterialAnodized Aluminum
BD20-AC with shutter
BD20-AC-DC with shutter

For a single channel version of this beam dump, see BD-20-AC for the LS-20 beam shutter.
