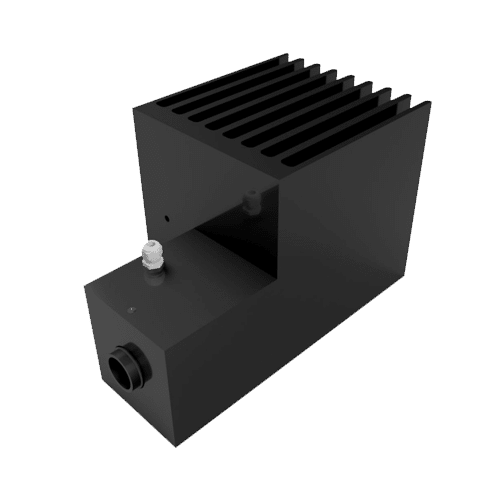

BD-20-AC Laser Beam Dump

Single Channel Beam Dump for LS-20 and LS-30

The BD-20-AC beam dump is compatible with the single channel laser shutter LS-20 and LS-30. When the shutter is closed, the shutter deflects the incoming laser beam towards its beam dump port.

Description

The beamdump is connected to the shutter by connector ring(s) supplied with the shutter. To connect a beam dump, unscrew the plug from the beam dump port of the shutter and screw the connector ring in its place.

SPECIFICATIONS
Dimensions162 x 90 x 100 mm
(6.38 x 3.54 x 3.94 in)
Weight2.3 kg
(5.07 lb)
Aperture Size20 mm
(0.79 in)
MaterialAnodized Aluminum
BD20-AC with shutter
BD20-AC-DC with shutter

For the dual channel version compatible with the SIL-rated LS-20SIL laser beam shutter, see BD20-AC-DC.
