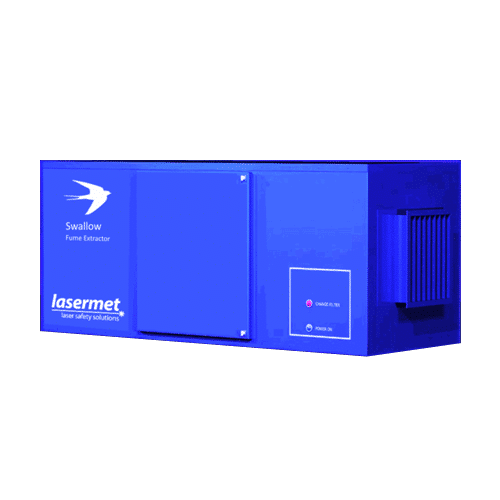

Swallow 4000

Filtered Fume Extraction System for Lasers

The Swallow is an air cleaner designed for the removal of particulates and gaseous contaminants and is typically suspended above the laser process workspace.

Description

It is designed specifically for applications that include areas having high load particulate concentrations such as laser welding where direct source capture may be difficult. Laser fume absorbent canisters are also an optional stage of filtration to control odors and gases.

The 4000cfm unit (6800m³/hr) accepts multiple stages of air filtration where the user can select from a variety of particulate or gaseous/chemical filtration depending on the laser process.

FEATURES
  • Full size air intake draws contaminants and recirculates filtered air
  • Internal air filters are sealed with full gaskets
  • Filter options include: pre-filtration, a secondaryfilter, HEPA or absorbent filters
  • 4000cfm (6800m³’hr) unit
  • Directional louvers adjustable for returned air
  • LED indicators for filter pressure drop and unitoperation.
  • Service door provides access to all components
  • Power options: 120VAC-1Ph, 230VAC-3Ph,480VAC-3Ph
SPECIFICATIONS
Part NumberFES-SW-4000
Rated airflow4000 cfm
(6800 m3/hr)
Air changes per hour for 140m3 cabin50
Pre-filteroptional
Final filterHEPA or Absorbent filter
Canistersoptional
Sound Level at 5ft perimeter73 dB
Operating Weight227 kg
Dimensions1.4 x 0.8 x 1.9 m
Voltage120VAC 1-Ph
230VAC 3-Ph
480VAC 3-Ph
Power Consumption1030 W
Throw (distance at 100fpm)30.5 m
