Standard Doors
For Laser Castle or stand-alone systems
These standard doors are available as built-in additions to the Laser Castle. The passive guards are certified to BS EN IEC 60825-4 safety of Laser Products Part 4: Laser Guards. Several door options are available to suit a variety of applications:
- Personnel Door

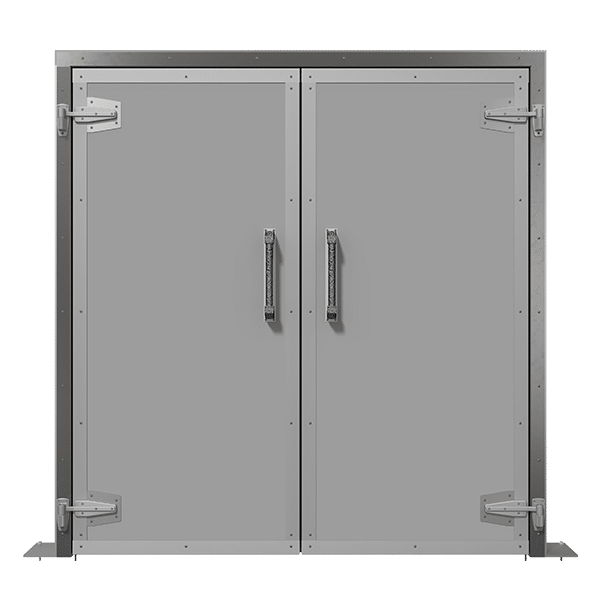

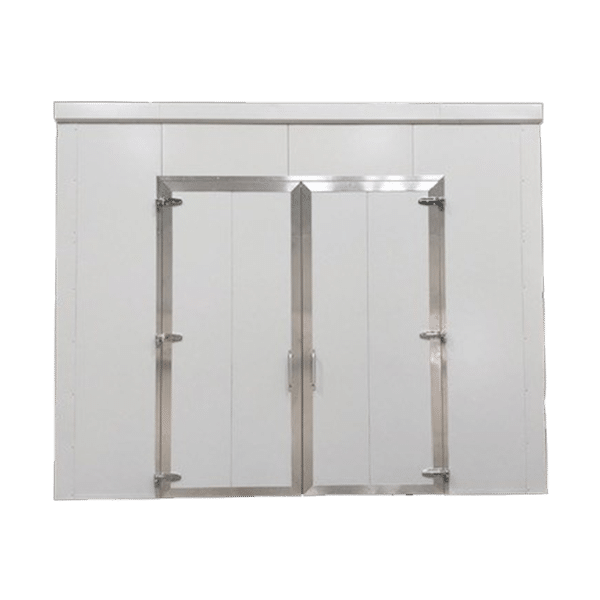

- Double Door
- Sliding Door
Description
Operation
These standard doors are manually operated but for larger doors, automatic operation may be necessary. Automatic operation involves the use of a push button and motor to open and close the door.
Passive and Active Guarding
All door panels are certified to BS EN IEC 60825-4 Safety of Laser Products Part 4: Laser Guards. Laser filter windows can also be fitted to the doors to allow viewing of the laser room.
For higher power applications, the door panels can be fitted with Lasermet’s Laser Jailer or Glaser Jailer for added protection. Using these active guards, any stray laser beam hitting the panel will disarm the laser automatically. Additional interlock equipment is required in this configuration.
Safety Standards
Lasermet panels meet fire safety requirements to ASTM E84-16 and EN 13823 Level C.
Standard Door Sizes
The sizes listed below are standardised and any deviations to the listed sizes are considered custom order.
| Part Number | Description | Clear Opening WxH | Panel Thickness |

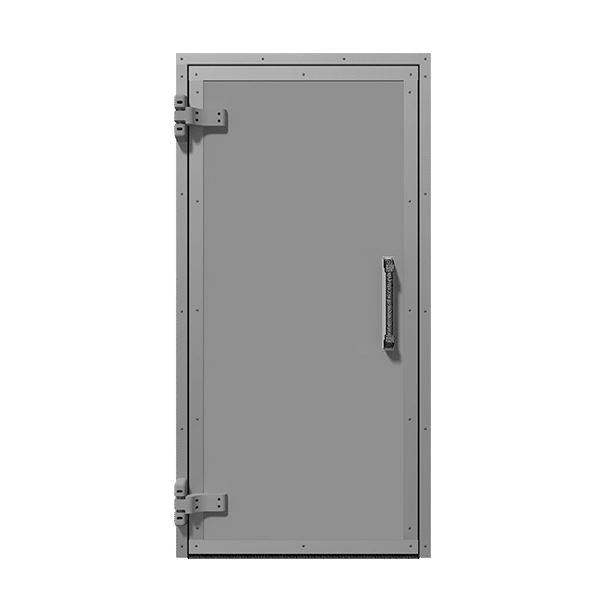

| LD-10082-00 | Single Door (Right-sided handle) | 886 x 2050mm | 100mm |

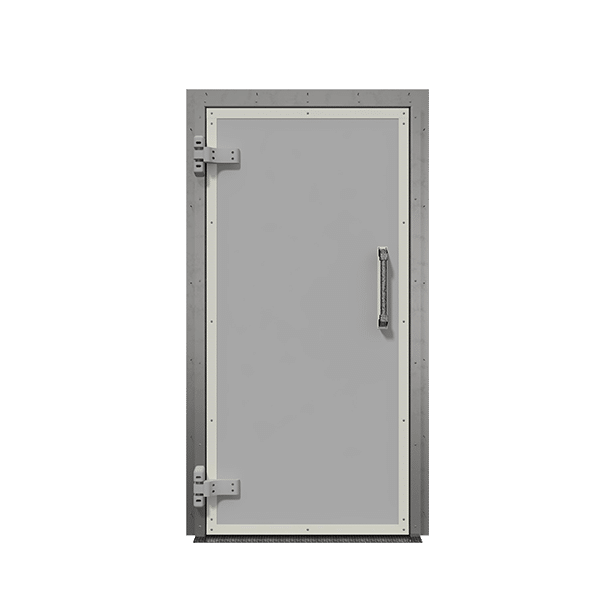

| LD-10085-00 | Single Door (Right-sided handle) | 896 x 2050mm | 50mm |
| LD-1003-00 | Double Door | 1860 x 2050mm | 100mm |

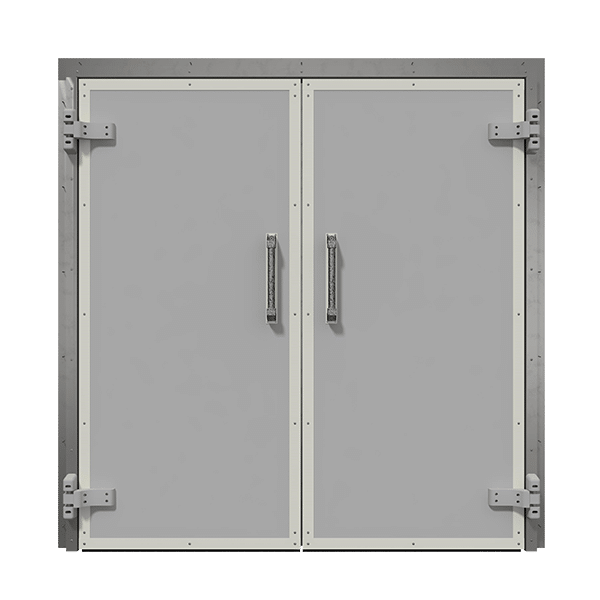

| LD-10084-00 | Double Door | 1886 x 2050mm | 50mm |

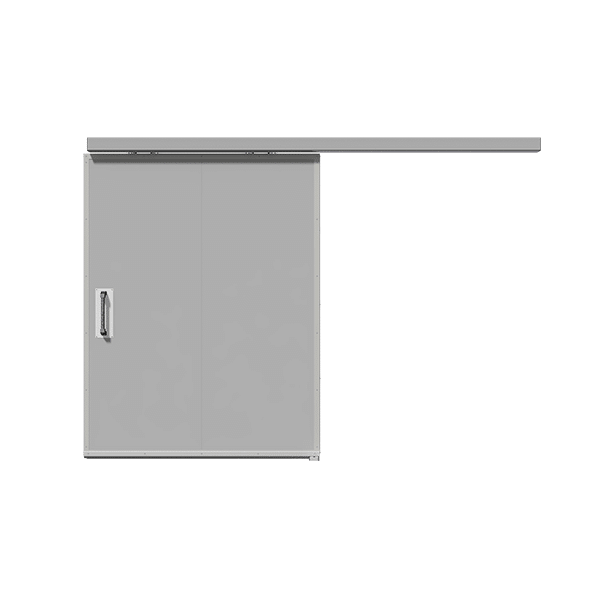

| LD-10090-00 | Single Sliding Door | 1800 x 2500mm | 100mm |

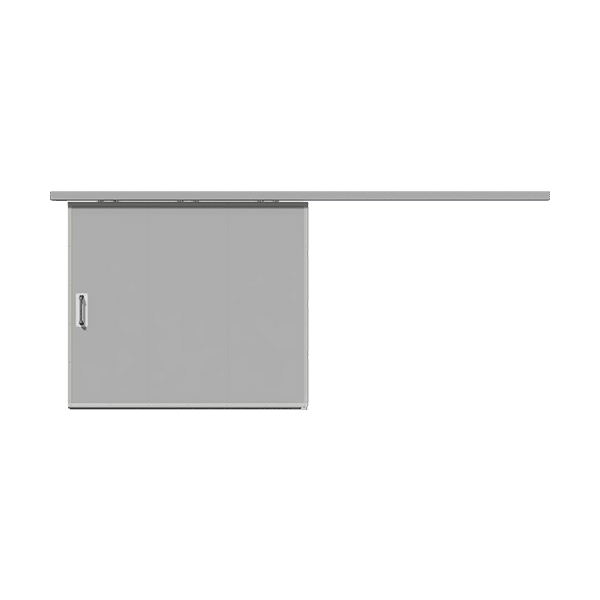

| LD-10093-00 | Single Sliding Door | 2800 x 2500mm | 100mm |

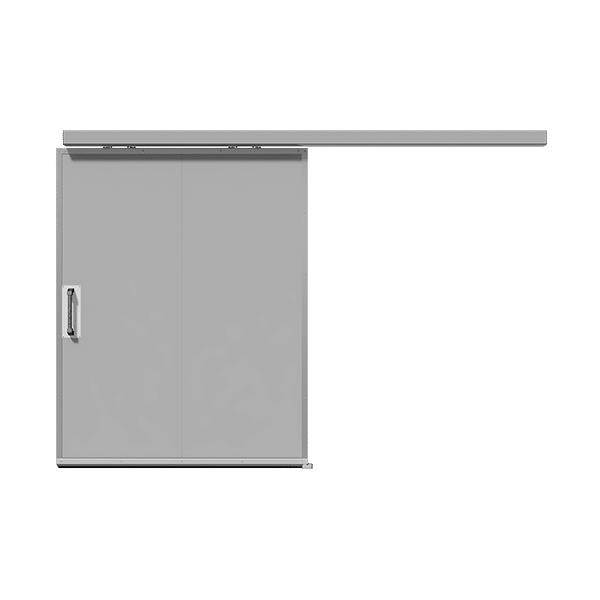

| LD-10091-00 | Single Sliding Door | 1900 x 2500mm | 50mm |

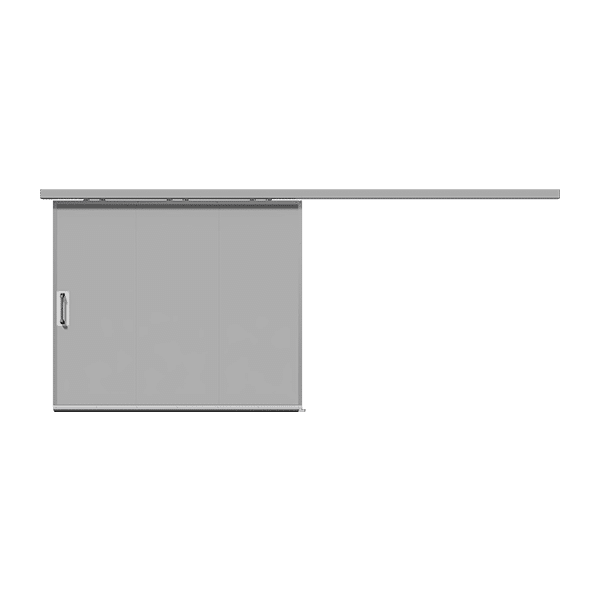

| LD-10094-00 | Single Sliding Door | 2900 x 2500mm | 50mm |

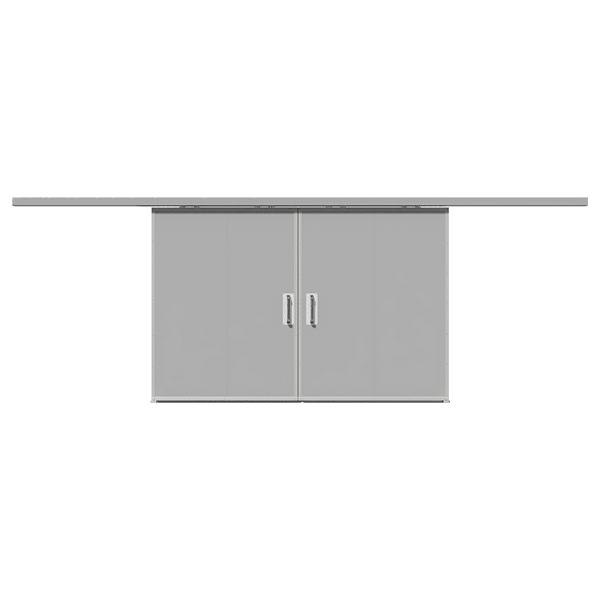

| LD-10095-00 | Double Sliding Door | 3700 x 2500mm | 100mm |
