Description

All Lasermet’s LR range of laser safety eyewear come with multiple filter options and frame options.

To order eyewear, select a combination of filter and frame. Note that not all frame types are available for all filter options.

LR-XXG1YYZ or LR-XXG2YYZ

Where:
XX – Frame Code
G1 or G2 – Mineral Glass Filter
YY – Filter Code
Z – Cushion Code

Frame Options

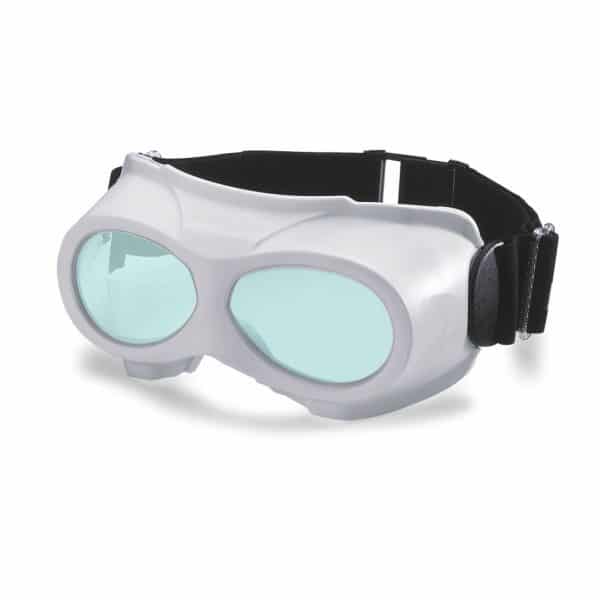

Antonov Frame

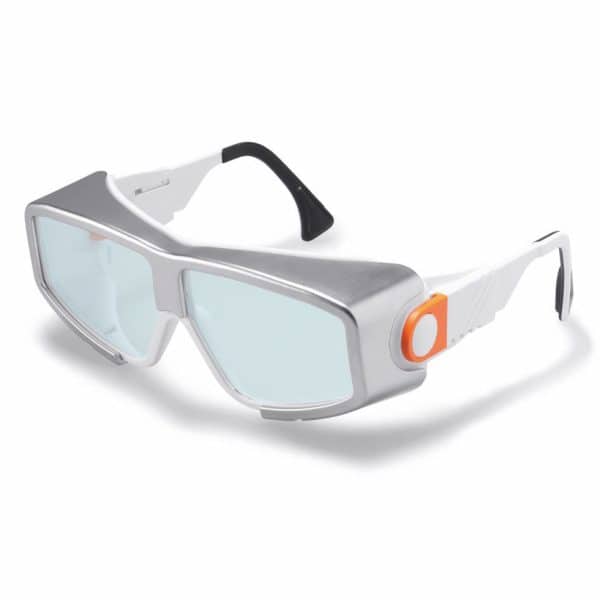

Martin Frame

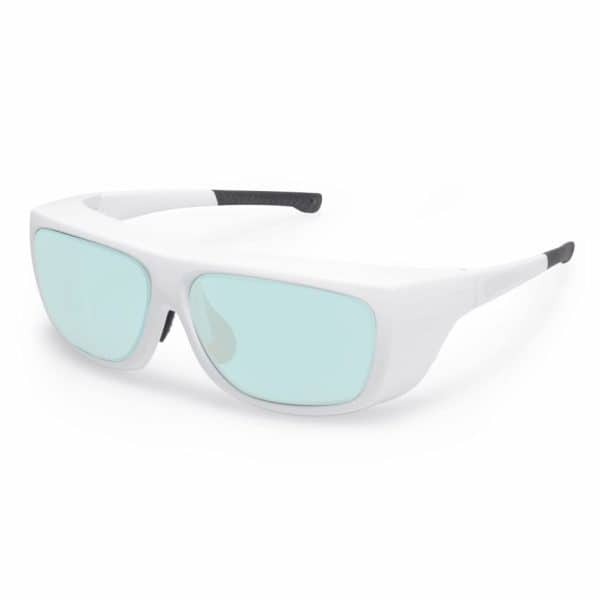

Chief Frame

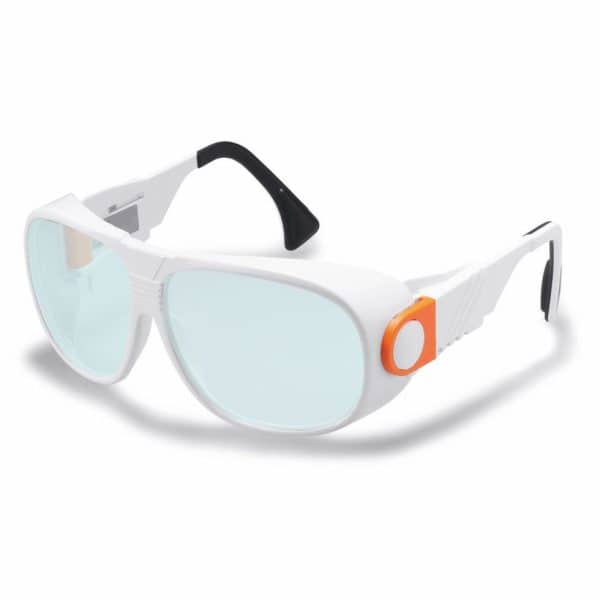

Spirit Frame

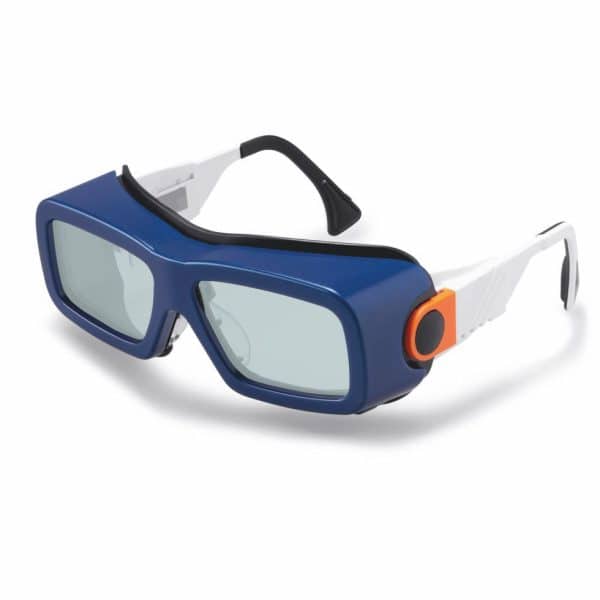

Fortress Frame

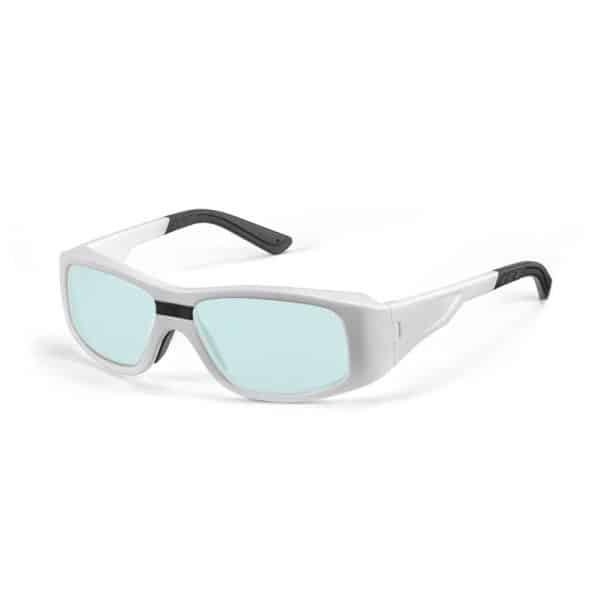

Tigershark Frame

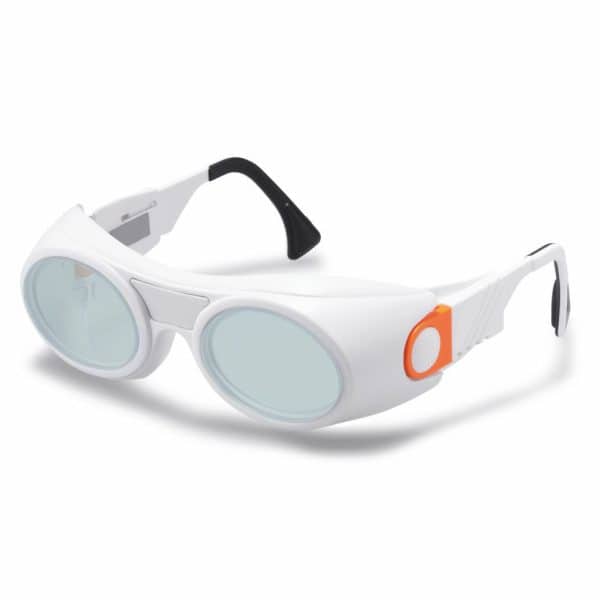

Lancer Frame

More frame information

Antonov	Flat curve Reinforced frame Can be worn over prescription eyewear Compatible with cushion frame options Optional adjustable head strap, head support, anti-fog inserts

Chief	Base curve 6 High performance strength frame Can be worn over prescription eyewear Anti-slip and cold-forming temples for adjustable fit


Fortress	Flat curve Adjustable temples Optional adjustable head strap, head support

Lancer	Light weight reinforced frame Adjustable temples Optional adjustable head strap, head support
Martin	Base curve 2 Broad field of view Light weight frame Adjustable temples Can be worn over prescription eyewear Optional adjustable head strap, head support

Spirit	Base curve 6 Reinforced frame Good field of view Adjustable temples Optional adjustable head strap, head support
Tigershark	Base curve 6 Light weight frame Very good field of view Nose pad and cold-forming temples for adjustable fit

Glass Filter Options

All filters are made of mineral glass absorption filters and are certified for full protection to EN 207 and alignment protection EN 208* (where indicated for alignment eyewear).

Coated filters use interference and absorption filter technology. Coated filters may have a reflective duotone colour.

Filter Code	Colour	VLT (%)	Suitable Laser Types	Frame Options
BI*	Dark grey	1%	Alignment in the visible range (400-670nm)	Antonov (AN) Fortress (FF) Lancer (LA)
CB (coated mineral glass)	Turquoise	50%	Disc, Nd:YAG lasers	Antonov (AN) Fortress (FF) Lancer (LA)
DA	Clear	90%	CO₂, CO Laser at 10600nm or 5400nm	Antonov (AN) Fortress (FF) Lancer (LA)
EB	Orange	40%	Nd:YAG Laser at 266-355nm or 532nm	Antonov (AN) Fortress (FF) Lancer (LA)
EC	Red	5%	Argon, frequency converted Nd:YAG lasers Protection level of D LB9 at 180nm – 315nm	Antonov (AN) Fortress (FF) Lancer (LA)
HF (coated mineral glass)	Violet	25%	Alexandrite, KTP, Diode, Nd:YAG lasers High M protection levels for powerful USP lasers	Antonov (AN) Fortress (FF) Lancer (LA)
KA	Blue green	45%	Pump diodes, YAG, fibre, disc lasers Protection levels certified from 750-1200nm	Antonov (AN) Fortress (FF) Lancer (LA)
KB	Light grey	70%	Nd:YAG laser welding, drilling, cutting	Antonov (AN) Fortress (FF) Lancer (LA)
KC	Light green	66%	Nd:YAG laser welding, drilling, cutting Within the spectral range >1400nm-2100nm DI LB5 + R LB3Y + M LB4 And >2100nm-25000nm DI LB4 + R LB3Y + M LB4	Antonov (AN) Fortress (FF) Lancer (LA)
KD (coated mineral glass)	Light grey	77%	IR Fiber, Disc, Nd:YAG, CO₂ lasers	Antonov (AN) Fortress (FF) Lancer(LA) Spirit (SP) Tigershark (TG)
KF	Light grey	60%	Nd:YAG laser welding, drilling, cutting	Antonov (AN) Fortress (FF) Lancer (LA)
KM	Light grey	66%	Nd:YAG laser material processing	Antonov (AN)
KO (coated mineral glass)	Light grey	77%	Diode, IR fibre, disc, Nd:YAG, CO₂lasers	Antonov (AN) Fortress (FF) Lancer (LA)
KP	–	–	–	–
KQ (coated mineral glass)	Light grey	65%	Diode, IR fibre, disc, Nd:YAG, CO₂lasers	Antonov (AN) Lancer (LA)
LA (coated mineral glass)	Orange	30%	Nd:YAG Laser and Harmonics M-Protection for Short Pulse Lasers (532nm, 1064nm)	Antonov (AN) Fortress (FF) Lancer (LA)
LB (coated mineral glass)	Orange	22%	Nd:YAG Laser and Harmonics M-Protection for Short Pulse Lasers	Antonov (AN) Fortress (FF) Lancer (LA)
LE	–	–	–	–
MA	Orange	25%	M-Protection for Short Pulse Lasers (315-1400nm)	Antonov (AN) Lancer (LA)
PA	Brown	7%	Ti:Sa plus pump at 532, Nd:YAG plus harmonics plus diode M-Protection Levels for ultra-short pulse lasers	Antonov (AN) Fortress (FF) Lancer (LA)
PB	Brown	10%	super-continuum-lasers, Ti:Sa with SHG and OPOs, Nd:YAG	Antonov (AN) Lancer (LA)
PD	Brown	4%	super-continuum-lasers, Ti:Sa with SHG and OPOs, Nd:YAG	Antonov (AN) Lancer (LA)
PE (coated mineral glass)	Orange	15%	M-protection ratings for short pulsed lasers (<3000nm) D LB8 + M LB9 at 1064nm D LB7+ M LB9 at 532nm	Antonov (AN) Lancer (LA)
PG (coated mineral glass)	Orange	15%	Nd:YAG, disc, fibre, diode, SHG, FHG, THG, CO₂ , USP lasers M-protection ratings for short pulsed lasers up to 25000nm	Antonov (AN) Lancer (LA)
QA*	Green	35%	Short pulse lasers including Ti:Sa M-Protection levels for 700-1200nm	Antonov (AN) Fortress (FF) Lancer (LA)
QB*	Green	32%	High Power LD, DPSS, Ti:Sa-Laser M-Protection in the range of 620-1580nm	Antonov (AN) Fortress (FF) Lancer (LA)
QC*	Green	45%	NIR and IR range Alignment protection at 630-635nm	–
QE	Green	32%	Nd:YAG, fibre, disc, CO₂ laser	Antonov (AN) Lancer (LA)
QF*	Blue green	25%	Ti:Sa, OPOs, USP lasers, super continuum laser	Antonov (AN) Lancer (LA)
G2HB	Light brown	15%	Dye lasers, medical and cosmetic dermatology applications	Lancer (LA)
G2KB	Light grey	70%	Nd:YAG laser welding, drilling, cutting	Antonov (AN) Chief (CH) Fortress (FF) Lancer (LA) Martin (MA) Spirit (SP) Tigershark (TG)
G2KE	Light grey	75%	Broad band protection effect within NIR and IR (850-11500nm)	Antonov (AN) Chief (CH) Fortress (FF) Lancer (LA) Martin (MA) Spirit (SP) Tigershark (TG)
G2KO (coated mineral glass)	Light grey	65%	Diode, IR fibre, disc, Nd:YAG, CO₂ lasers	Chief (CH) Tigershark (TG)
G2QD	Blue green	45%	Nd:YAG lasers, pump diodes, fibre, disc lasers	Chief (CH) Spirit (SP) Tigershark (TG)
