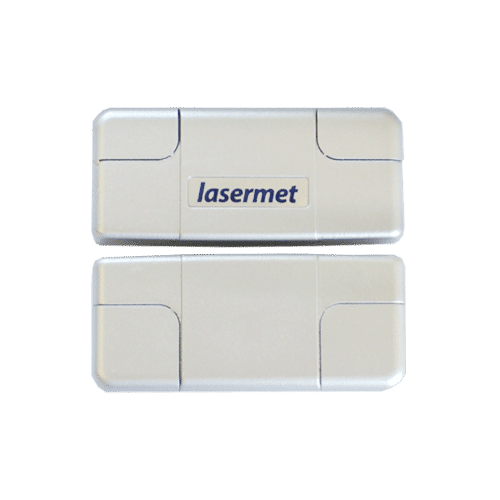

IS-MDC-12 Interlock Switch

Dual Channel Interlock® Switch

Lasermet’s IS-MDC-12 is a dual channel coded magnetic door safety contact, which is used to detect when a door or other moveable cover forming part of a protective enclosure is open.

  • Achieve Performance Level ‘e’ as specified in BS EN 13849-1:2008
  • Small, sleek, and compact package
  • CE and UKCA marked
Category: Tags: ,

Description

Download Brochure
  • Small and compact – good looking design blends in with professional standard laboratories and hi-tech premises
  • High performance and high reliability. The IS-MDC-12 can achieve Performance Level ‘e’ as specified in BS EN 13849-1:2008 when correctly wired to a suitable Interlock® controller
  • “Coded” design. i.e. The magnetic field is arranged such that the switch cannot easily be defeated by a single magnet
  • Measuring just 67mm wide, 29.5mm tall and 13.5mm deep, the dual channel Interlock® switch has a compact footprint
  • High tolerance to offset alignment
  • Concealed rear, or top, cable entry
  • Conforms to CE and UKCA requirements

The IS-MDC-12 has three contacts, two of which are closed and one of which is open when the door is closed. All three contacts change over when the door is open.

SPECIFICATIONS
Contacts2NC / 1NO
Rating300mA Resistive Load 50V
ChannelsDual
Magnet CouplingCoded
Maximum RangeTypically 10mm
Safety PerformanceUp to EN 13849-1:2008 PL’e’
Operating Environment-5° to +45°C, 0 – 95% RH
Environmental ProtectionIP50
Switch Size67 X 29.5 X 13.5mm
Actuator Size67 X 29.5 X 13.5mm
Lead Length2m approx.
Combined Weight85g approx.
Conforms to StandardsBS EN 1088:1995+A2:2008 Safety of machinery – Interlocks
