Dolphin Laser Safety Curtain Pod

Safety for Hand-held Laser Welding
  • Ideal for hand-held laser welding
  • Interlock® ready
  • Low-cost modular safety solution
  • Self-assembly

Description

Self-built Solution

The Dolphin Laser Safety Curtain Pod is built from Lasermet’s Dolphin Laser Blocking Curtain material – certified to EN 12254 Screens for Laser Working Places.

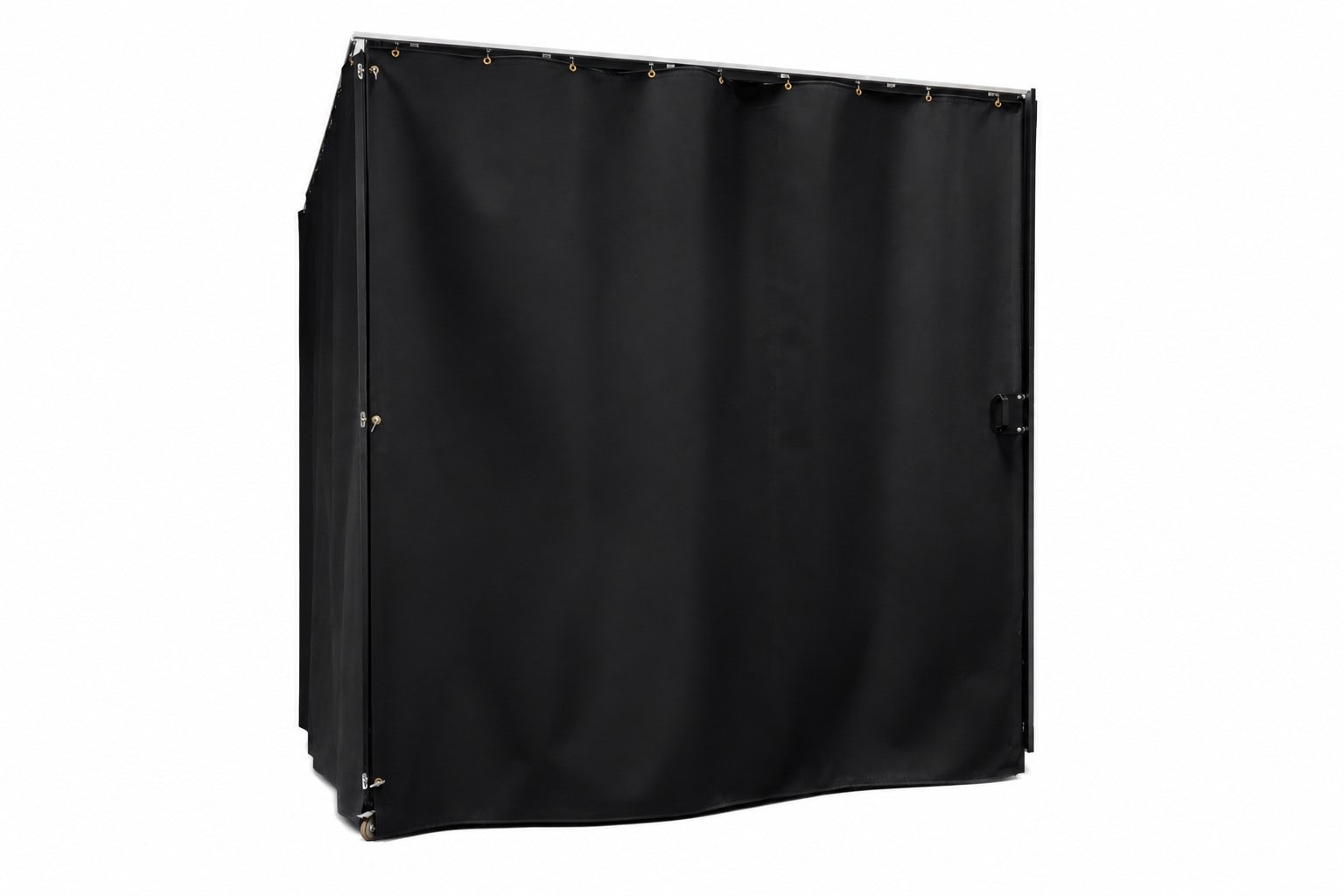

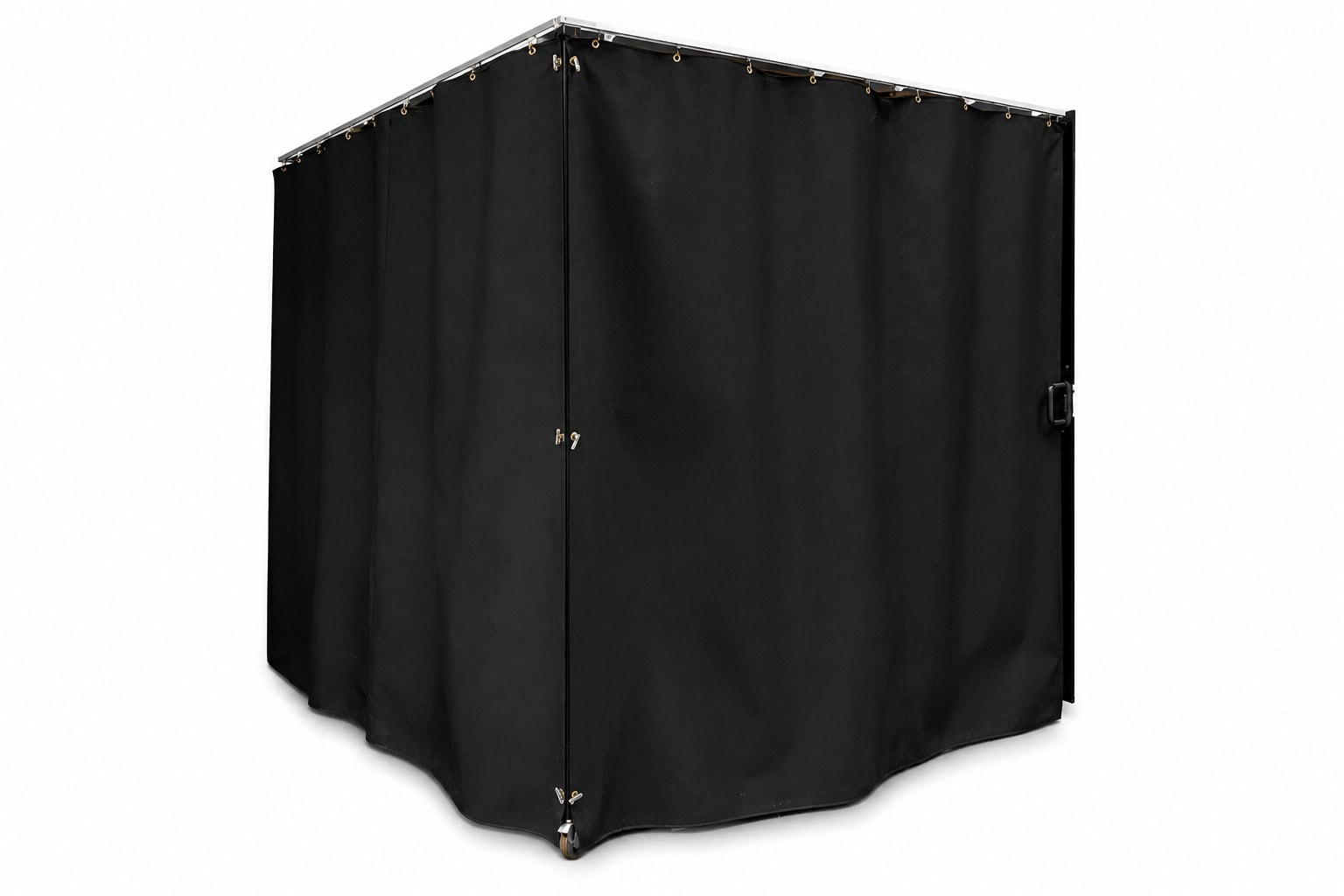

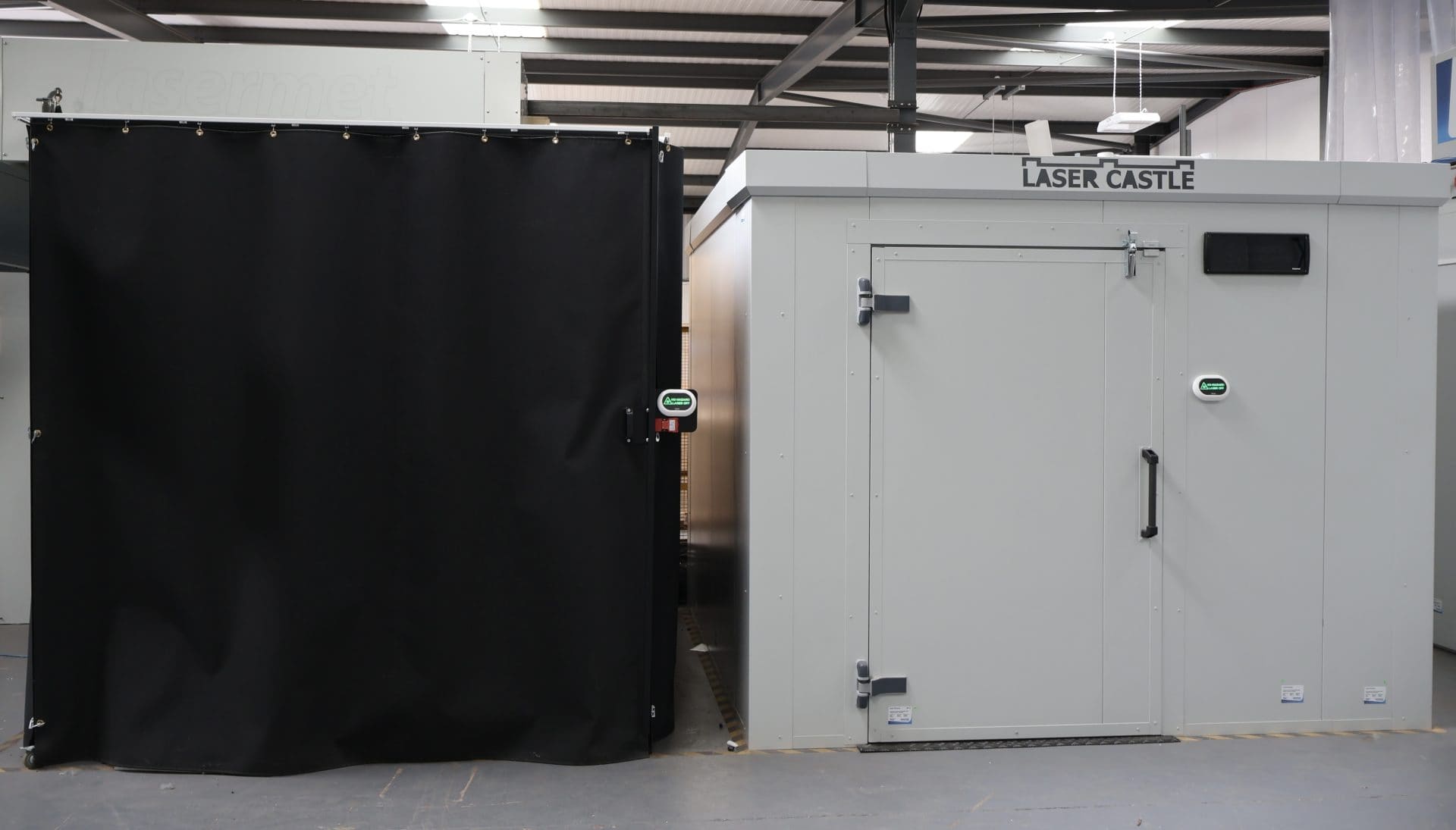

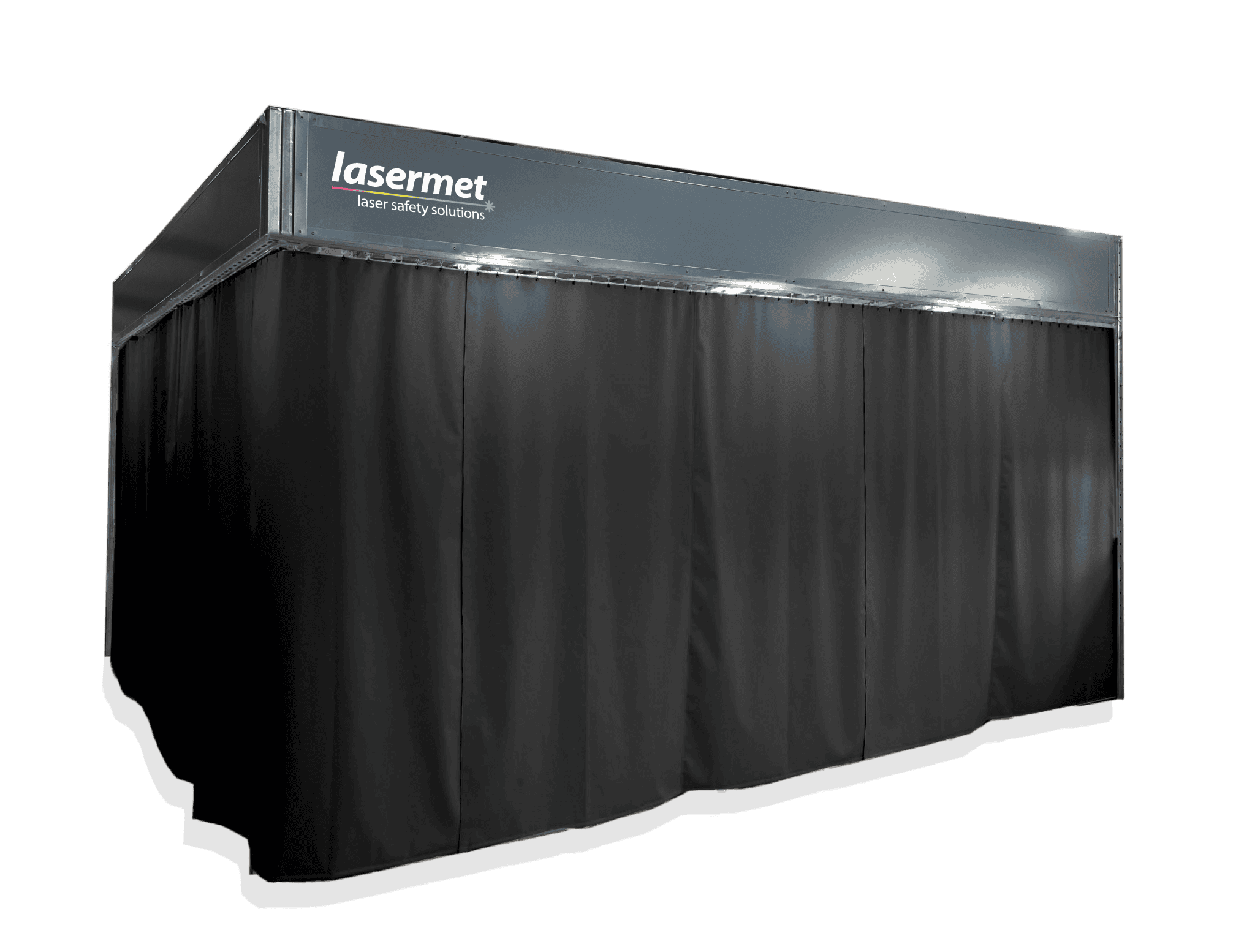

The Dolphin Pod is a 2.4m (8ft) cube that supports laser blocking curtains to enable users of handheld laser welding devices to work without endangering surrounding workers from stray laser radiation. It is supplied as a low-cost, self-assembly pod in flat-pack form to enable easy transport and assembly by the customer. This means that it can also be disassembled and rebuilt in a different location quickly and easily if required.

The standard enclosure comes with a manually-operated curtain door and an open roof for ventilation.

INTERLOCK® OPTIONS

The Dolphin Pod comes with an Interlock® upgrade option complete with safety interlock switches, dual-message LED warning sign, and emergency stops – all linked to an Interlock® Controller.

PROTECTION LEVELS
Wavelength Range (nm)Protection Level
180 – 315D AB8 + IR AB3 + M AB5Y
315 – 1050D AB6 + IR AB7 + M AB7Y
1050 – 1400D AB5 + IR AB7 + M AB7Y
1400 – 25000DI AB3 + R AB3Y
PEL RATINGS
Irradiated AreaPEL (T3) 10sPEL (T2) 100s
4 mm23.9 MW/m22.2 MW/m2
2000 mm20.62 MW/m20.35 MW/m2
DIMENSIONS

Dolphin Pod enclosures come in a 2.4 x 2.4 x 2.4m cube.

Ordering Options

Additional kits can be ordered for added functionality.

ProductInclusions
Dolphin Laser Safety Curtain PodStandard Curtain Enclosure with no interlocks
Dolphin Laser Safety Curtain Pod with Interlock® SystemStandard Curtain Enclosure with ICS-SOLO Interlock® Controller, interlock switch, LED warning sign, emergency stop buttons
Dolphin Laser Safety Curtain Pod with ALF Helmet and Interlock® SystemStandard Curtain Enclosure with ICS-7-ALF or ICS-SOLO Interlock® Controller, Single or Dual ALF Helmet, interlock switch, LED warning sign, emergency stop buttons
Lasermet Dolphin material is black on both sides
The Dolphin material is black on both sides

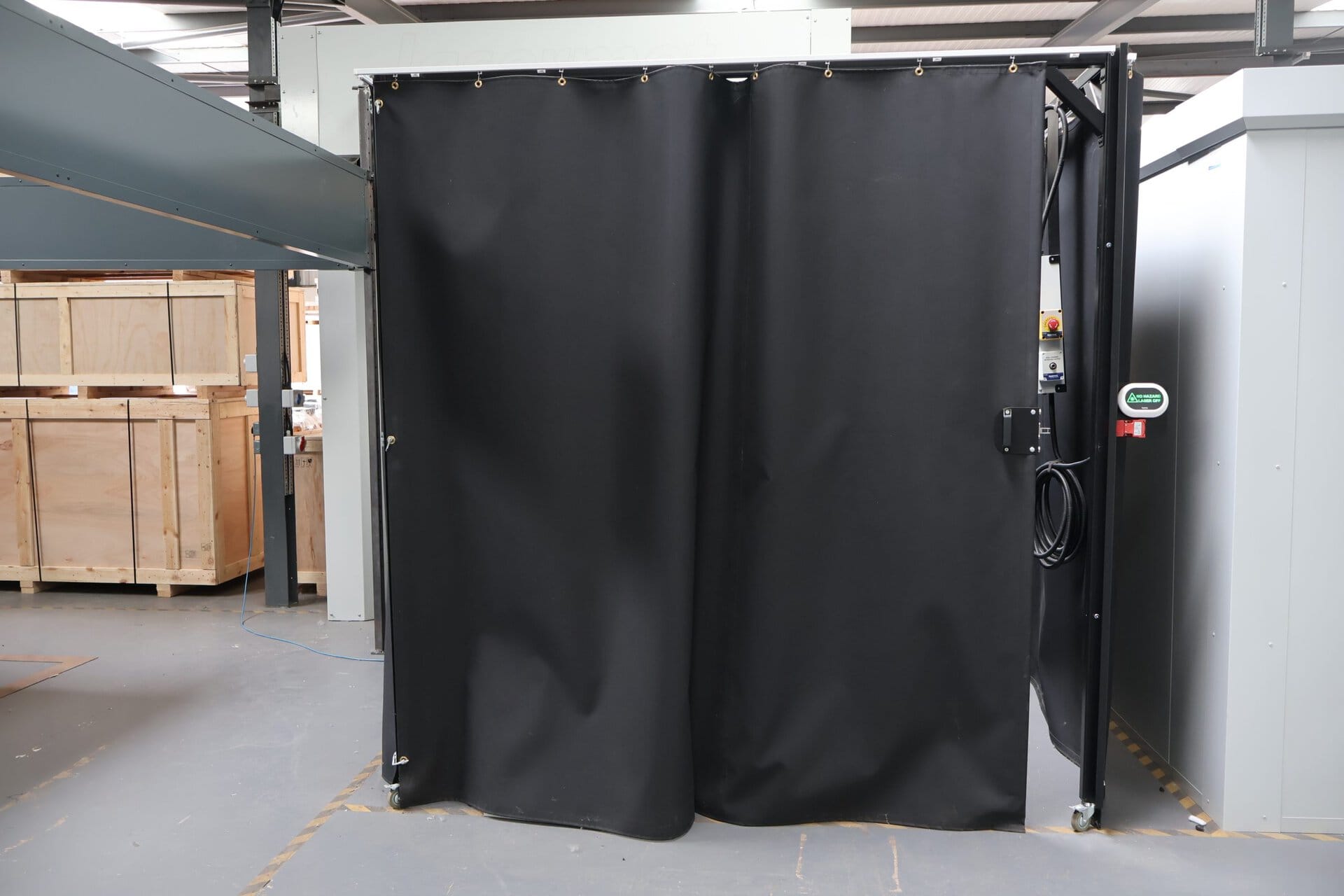

Dolphin laser safety curtain pod with LED warning sign
One side of the pod acts as an access door which includes an interlocking device that disables the laser if it is open or unlocked. The LED warning sign displays the laser status.
Inside the pod by Lasermet ICS-SOLO
Inside the pod: ICS-SOLO with the distribution box and the keyswitch
ICS-7-ALF configuration for use with ALF Helmets Laser Safety Helmets
Inside the pod: ICS-7-ALF configuration for use with ALF Helmets

Additional information

Dimensions

2.4 x 2.4 x 2.4m
