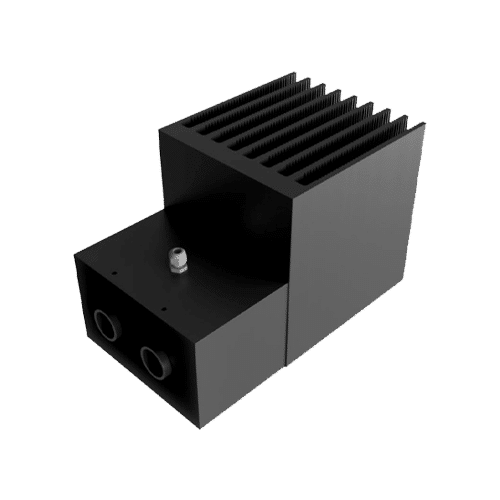

BD-20-AC-DC Laser Beam Dump
Dual Channel Beam Dump for LS-20SIL and LS-30SIL
The dual channel BD-AC-DC beam dump is compatible with SIL-rated laser shutter LS-20SIL and LS-30SIL. When the shutter is closed, the shutter deflects the incoming laser beam towards its beam dump.
- Dual channel
- SIL3-rated
- Compatible with Lasermet beam shutters
Description
The beamdump is connected to the shutter by connector ring(s) supplied with the shutter. To connect
beam dump, unscrew the plug from the beam dump port of the shutter and screw the connector ring in its place.
Specifications
| Dimensions | 162 x 90 x 100 mm |
| Weight | 3.2 kg |
| Aperture Size | 20 mm, two apertures |
| Material | Anodised Aluminium |
For a single channel version of this beam dump, see BD20-AC for the LS-20 beam shutter.
Dimensions
